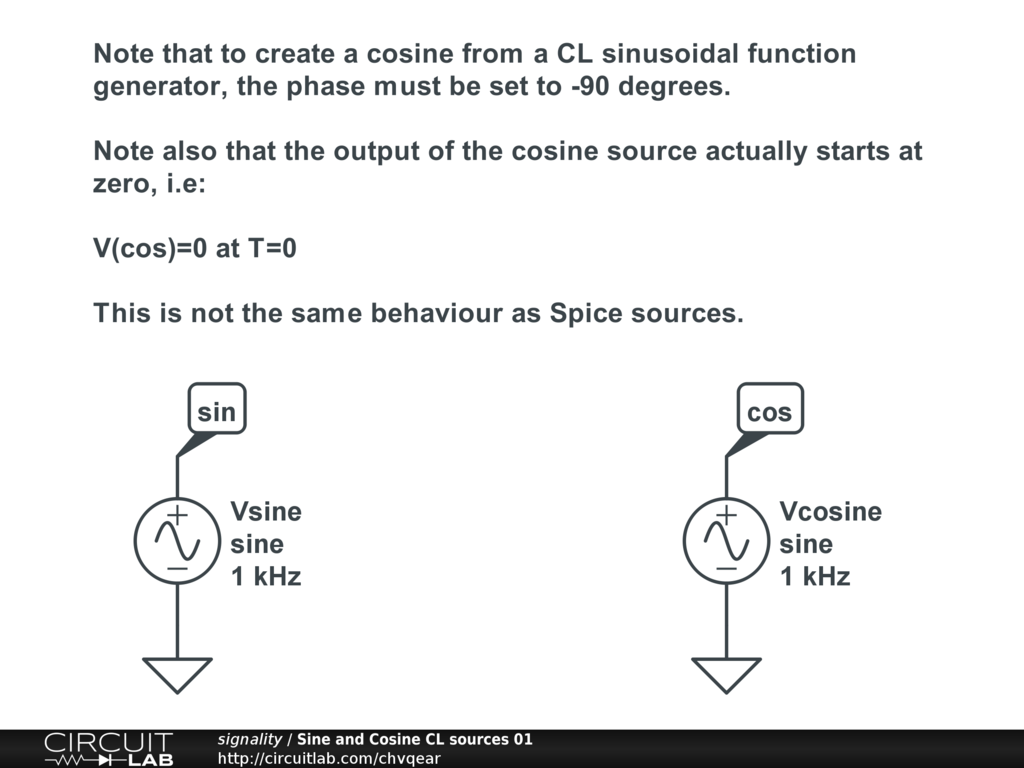

Note that to create a cosine from a CL sinusoidal function
generator, the phase must be set to -90 degrees.

Note also that the output of the cosine source actually starts at
zero, i.e:

V(cos)=0 at T=0

This is not the same behaviour as Spice sources.
