This circuit demonstrates that PWL(), PWREPEAT(), PWS()
and PWSREPEAT() source expressions can be used in a
behavioural source as part of a longer expression.

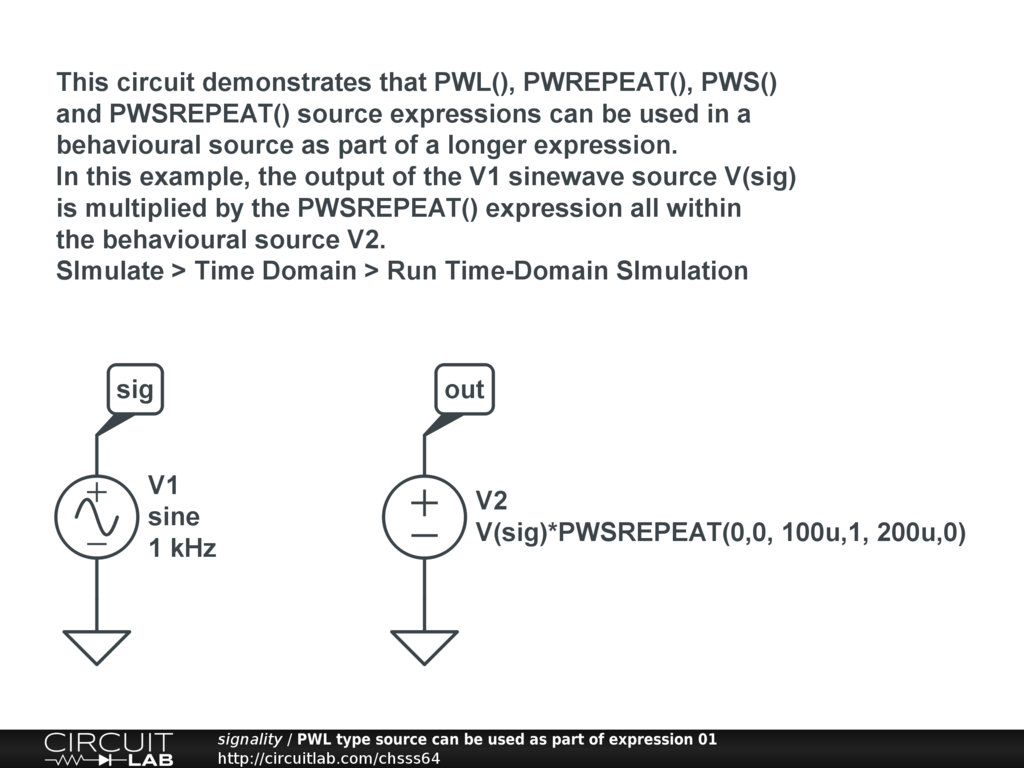

In this example, the output of the V1 sinewave source V(sig)
is multiplied by the PWSREPEAT() expression all within
the behavioural source V2.

SImulate > Time Domain > Run Time-Domain SImulation
