behavioural non-inv schmitt 01

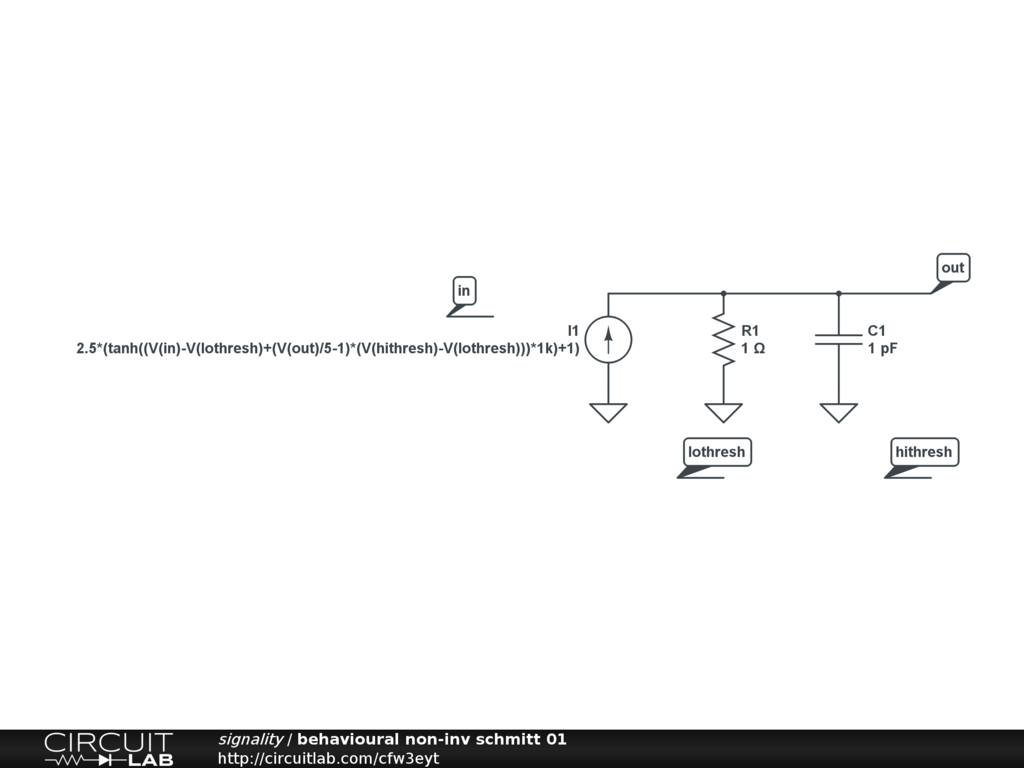

Experimenting with custom part block ... this is the circuit to go in the block.

Haven't worked out how to do it yet.
