LM334_02 PUBLIC

Created by
Created April 30, 2012
Last modified May 01, 2012
Tags lm334

Summary

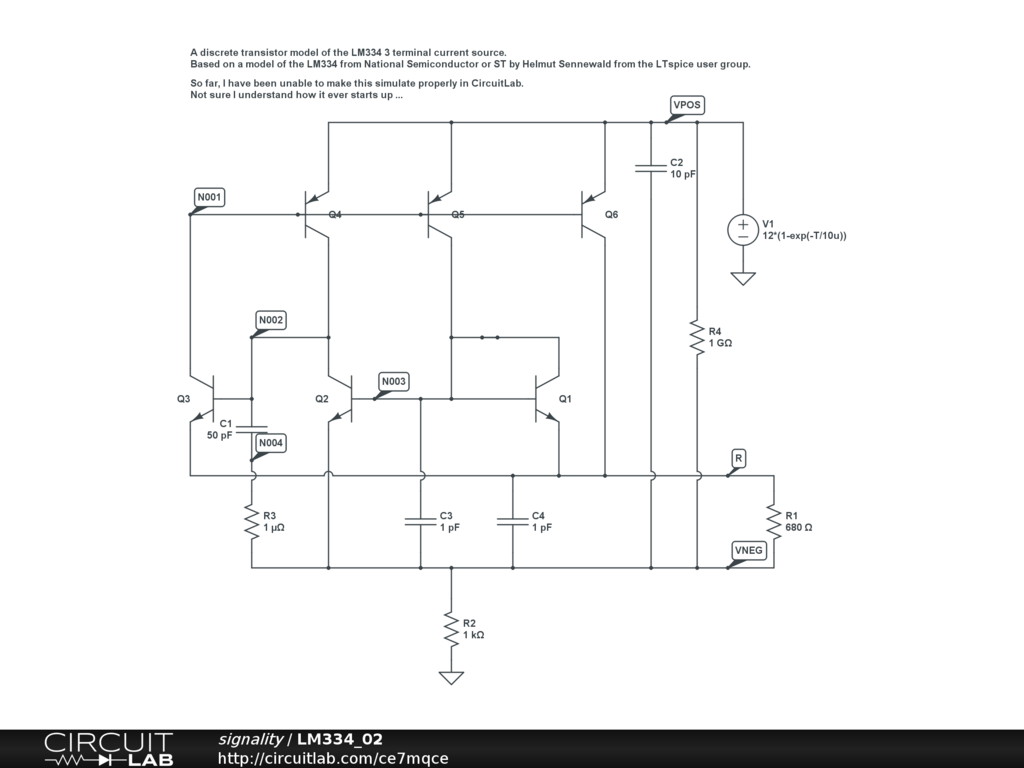

A discrete transistor model of the LM334 3 terminal current source.

Based on a model of the LM334 from National Semiconductor or ST by Helmut Sennewald from the LTspice user group.

So far, I have been unable to make this simulate properly in CircuitLab.
