Two ways to generate sinusoidal signals signals.

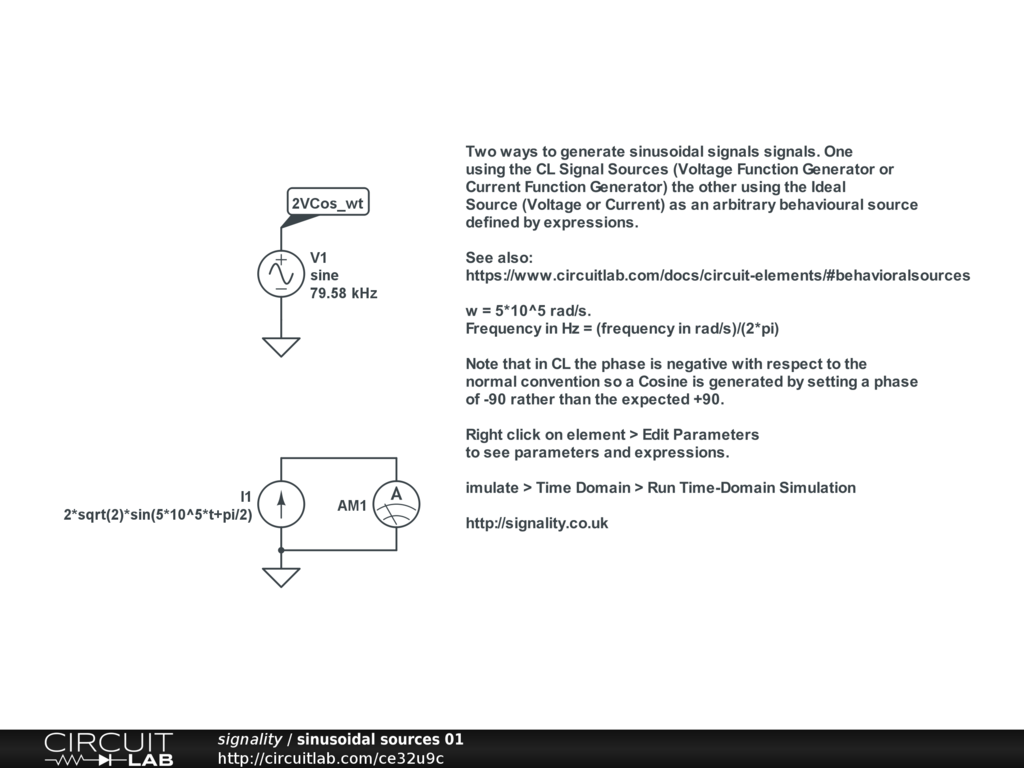

Two ways to generate sinusoidal signals signals. One using the CL Signal Sources (Voltage Function Generator or Current Function Generator) the other using the Ideal Source (Voltage or Current) as an arbitrary behavioural source defined by expressions.

See also:

w = 5*10^5 rad/s.

Frequency in Hz = (frequency in rad/s)/(2*pi)

Note that in CL the phase is negative with respect to the normal convention so a Cosine is generated by setting a phase of -90 rather than the expected +90.

Right click on element > Edit Parameters to see parameters and expressions.

imulate > Time Domain > Run Time-Domain Simulation
