Summary

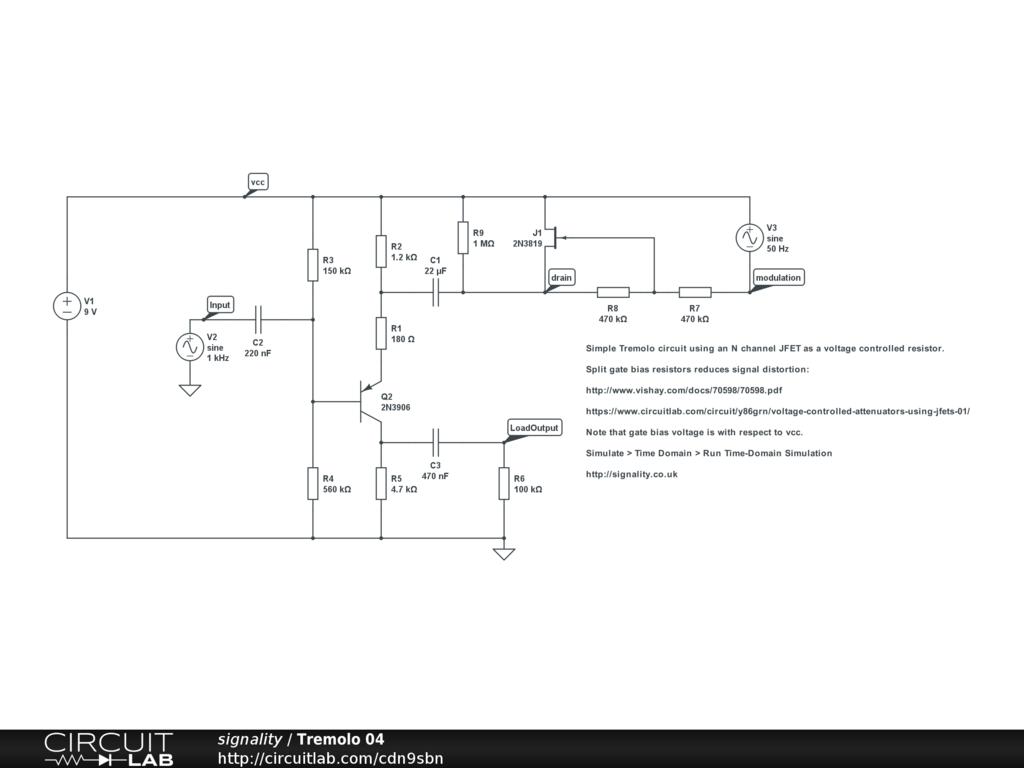

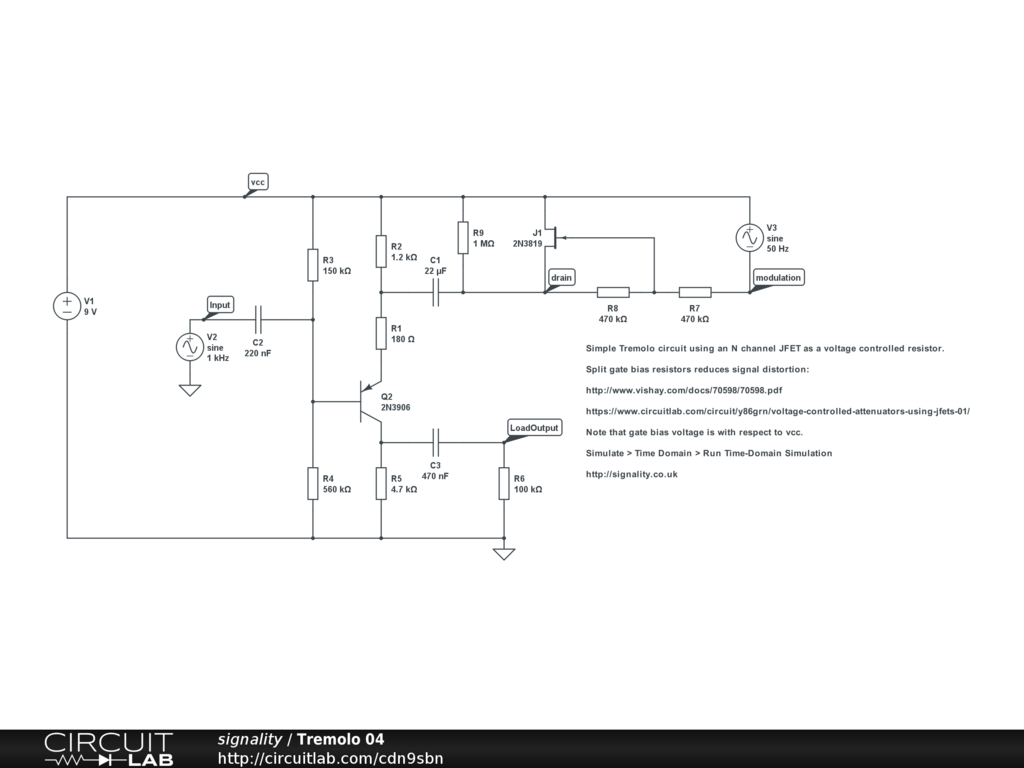

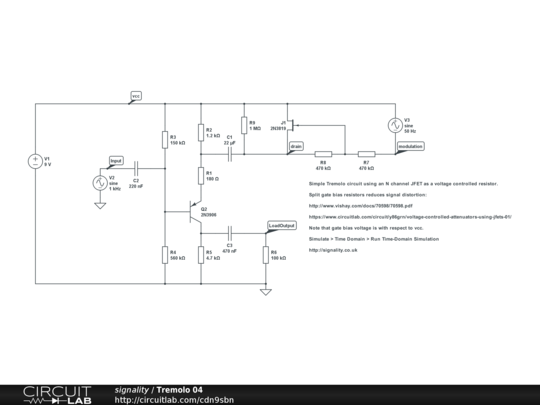

Simple Tremolo circuit using an N channel JFET as a voltage controlled resistor.


Description

Simple Tremolo circuit using an N channel JFET as a voltage controlled resistor.

Reduced signal distortion version of:

https://www.circuitlab.com/circuit/a6hr4e/tremolo-03/

Split gate bias resistors reduces signal distortion:

http://www.vishay.com/docs/70598/70598.pdf

https://www.circuitlab.com/circuit/y86grn/voltage-controlled-attenuators-using-jfets-01/

Note that gate bias voltage is with respect to vcc.

Simulate > Time Domain > Run Time-Domain Simulation
