LED With A Capacitor PUBLIC

Created by
Created February 25, 2013
Last modified February 25, 2013
Tags capacitor   led

Summary

A fading LED circuit

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

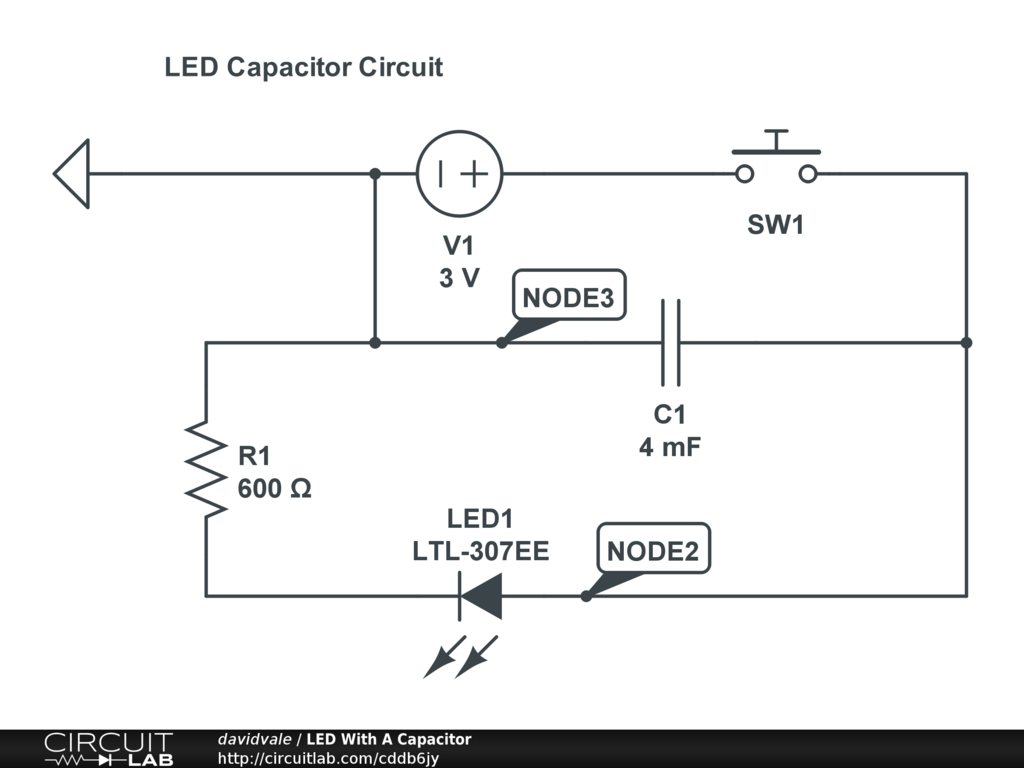

Push the button to light the led. Release the button to cut off power and watch the LED slowly fade as the capacitor empties.

http://sqroot.eu/2013/02/fading-led-circuit/
