amplitude modulation 02

Created by	signality
Created	October 30, 2012
Last modified	October 30, 2012
Tags	amplitude-modulation carrier lower-sideband lsb upper-sideband usb

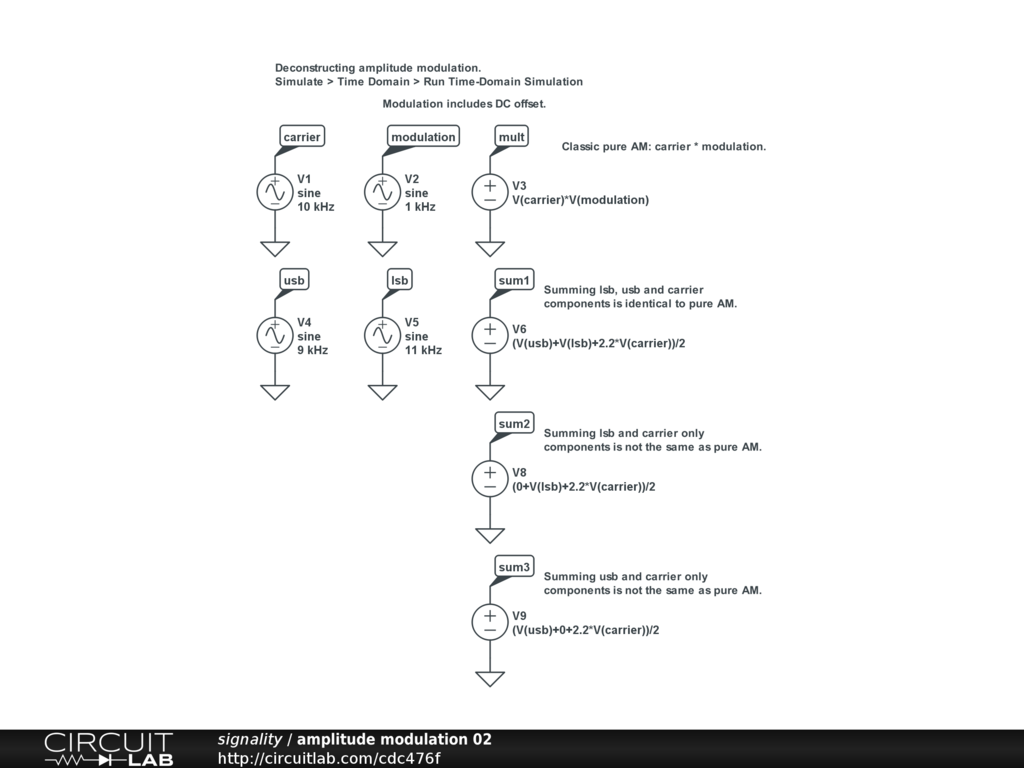

Deconstructing amplitude modulation.

Simulate > Time Domain > Run Time-Domain Simulation
