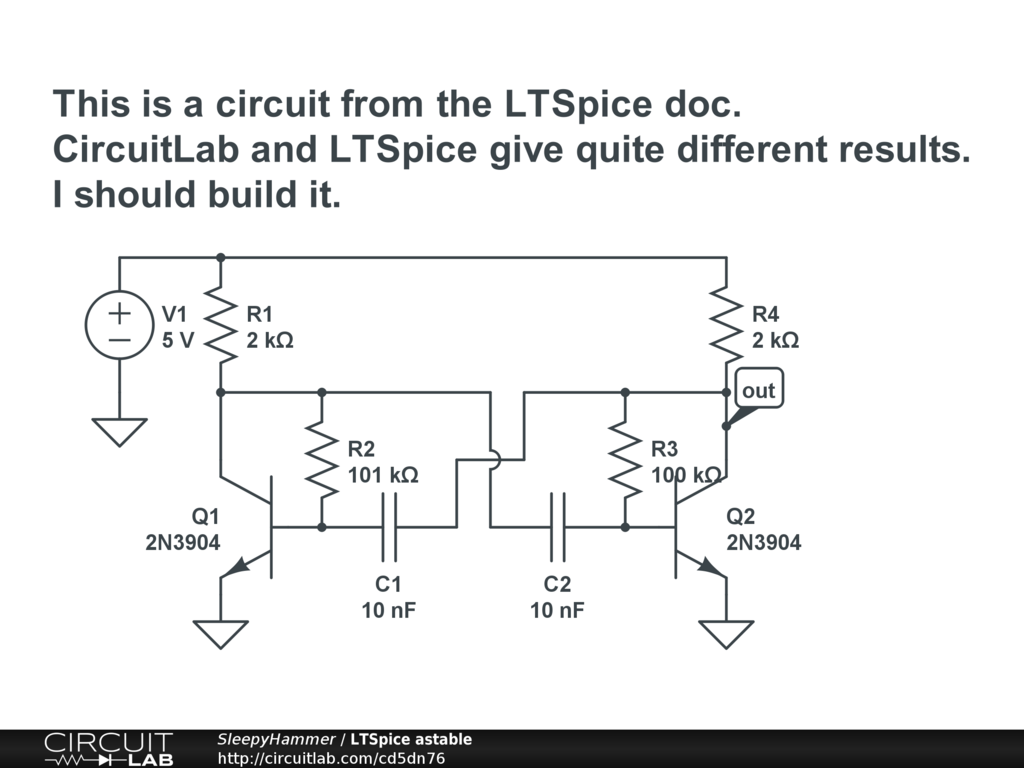

Astable circuit from the LTSpice doc.


This is a circuit from the LTSpice doc. CircuitLab and LTSpice have different results for the frequency, the onset of oscillation, and the initial value of the output voltage.

Probably neither is really accurate. I should build it. I should also step some components for tolerance testing.
