Summary

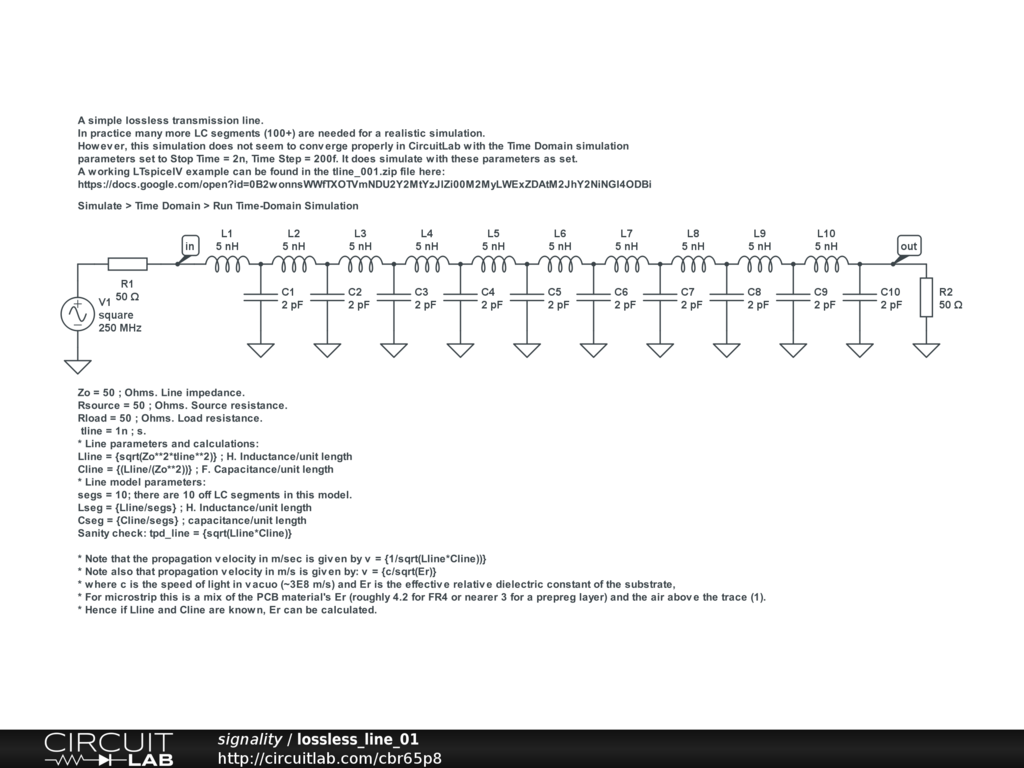

A simple lossless transmission line.
In practice many more LC segments (100+) are needed for a realistic simulation.


Description

A simple lossless transmission line. In practice many more LC segments (100+) are needed for a realistic simulation.

However, this simulation does not seem to converge properly in CircuitLab with the Time Domain simulation parameters set to Stop Time = 2n, Time Step = 200f. It does simulate with these parameters as set.

A working LTspiceIV example can be found in the tline_001.zip file here: https://docs.google.com/open?id=0B2wonnsWWfTXOTVmNDU2Y2MtYzJlZi00M2MyLWExZDAtM2JhY2NiNGI4ODBi
