x^n power function returns real values only 01 PUBLIC

It is not made clear in the CL Documentation for
expressions:

https://www.circuitlab.com/docs/expressions/

but the ^ or POW(x,n) function only returns the real part of x^y.

This means that it returns 0 with non-integer exponents
and negative inputs.

It is not made clear in the CL Documentation for expressions:

https://www.circuitlab.com/docs/expressions/

but the ^ or POW(x,n) function only returns the real part of x^y.

This means that it returns 0 with non-integer exponents and negative inputs.

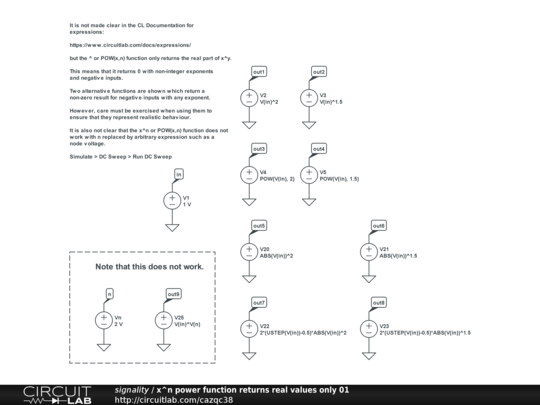

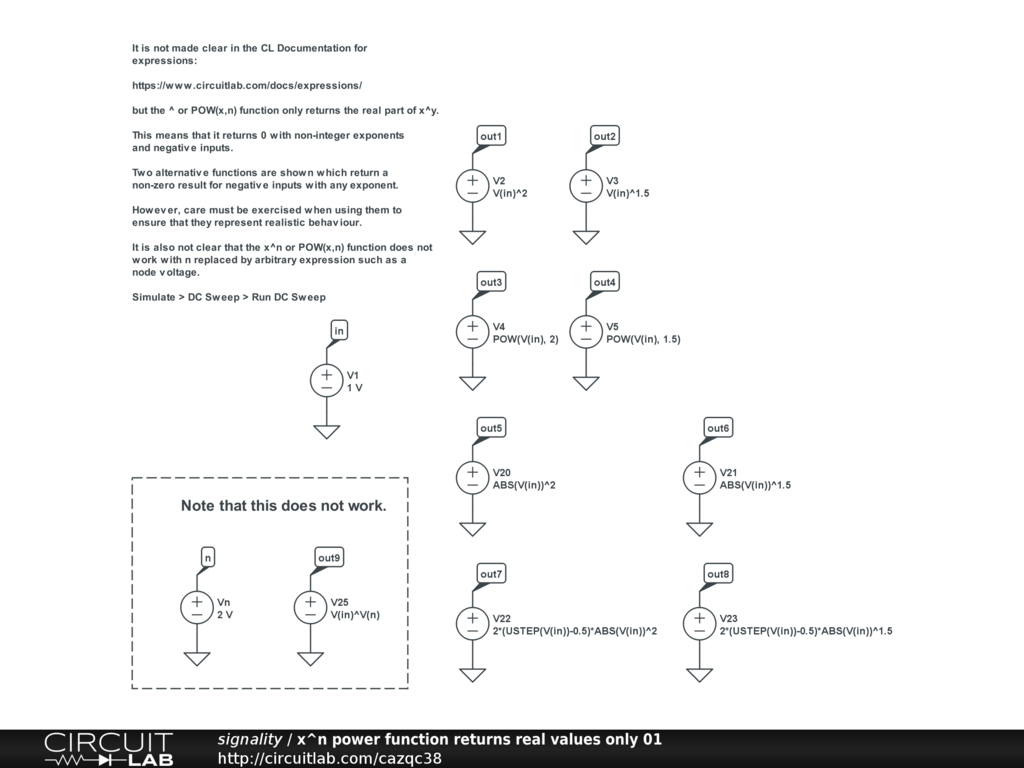

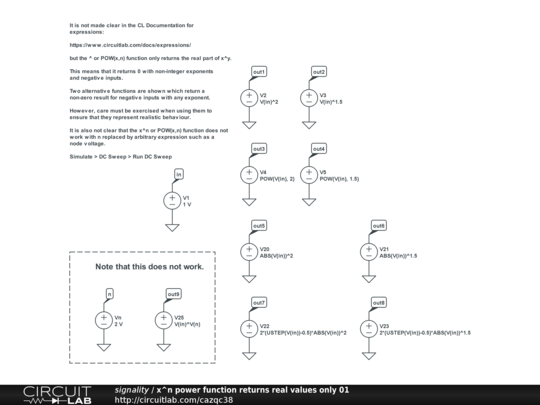

Two alternative functions are shown which return a non-zero result for negative inputs with any exponent.

However, care must be exercised when using them to

ensure that they represent realistic behaviour.

It is also not clear that the x^n or POW(x,n) function does not work with n replaced by arbitrary expression such as a node voltage.

Simulate > DC Sweep > Run DC Sweep
