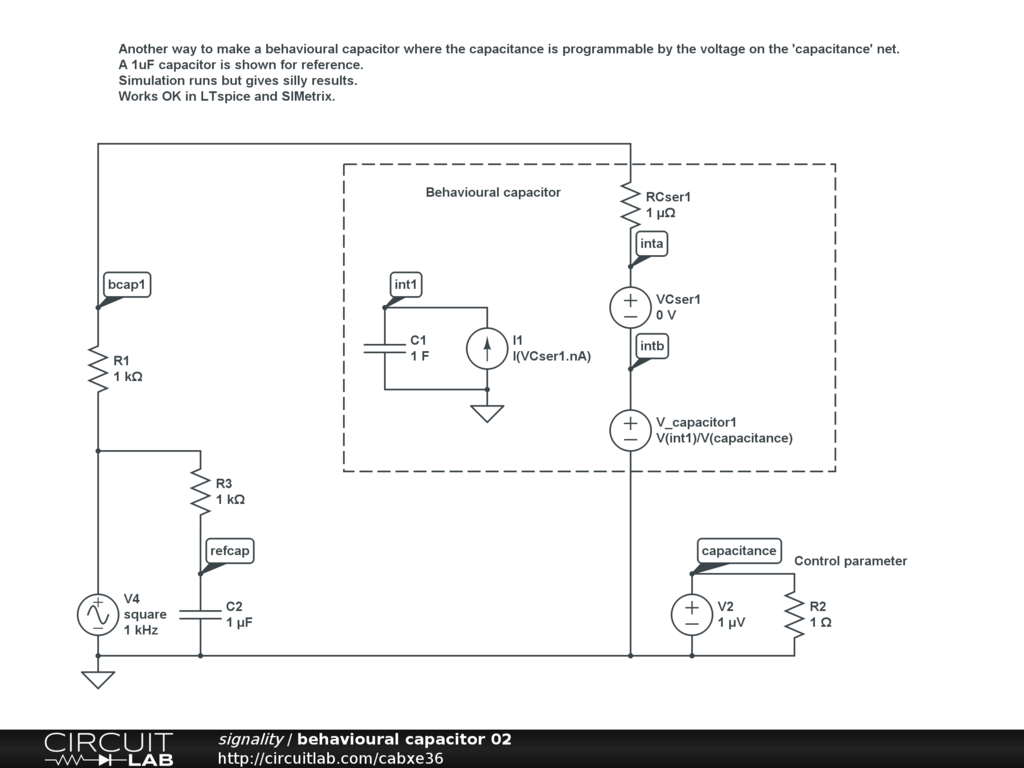

Another way to make a behavioural capacitor where the capacitance is programmable by the voltage on the 'capacitance' net.
A 1uF capacitor is shown for reference.
Simulation runs but gives silly results.
Works OK in LTspice and SIMetrix.
For more see: SPICE Analog Behavioral Modeling of Variable Passives by Christophe Basso http://powerelectronics.com/mag/power_spice_analog_behavioral_1/
