Three stage RC inverter ring oscillator

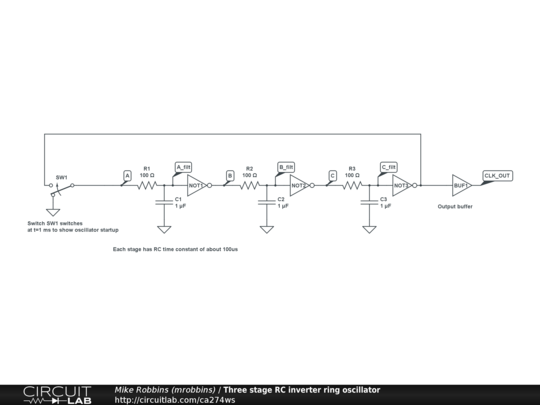

Three inverter stages in a ring, with RC for delay, create an oscillator.
