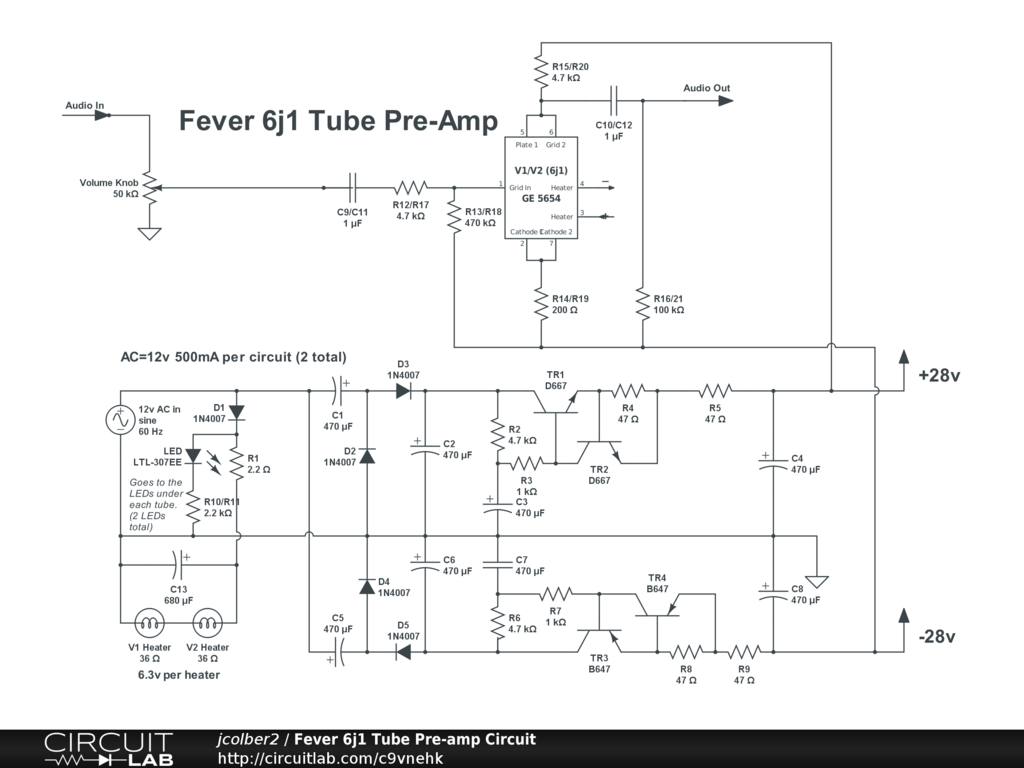

English[US notation] version of a Chinese schematic for the "Fever 6j1 Tube Pre-Amp".

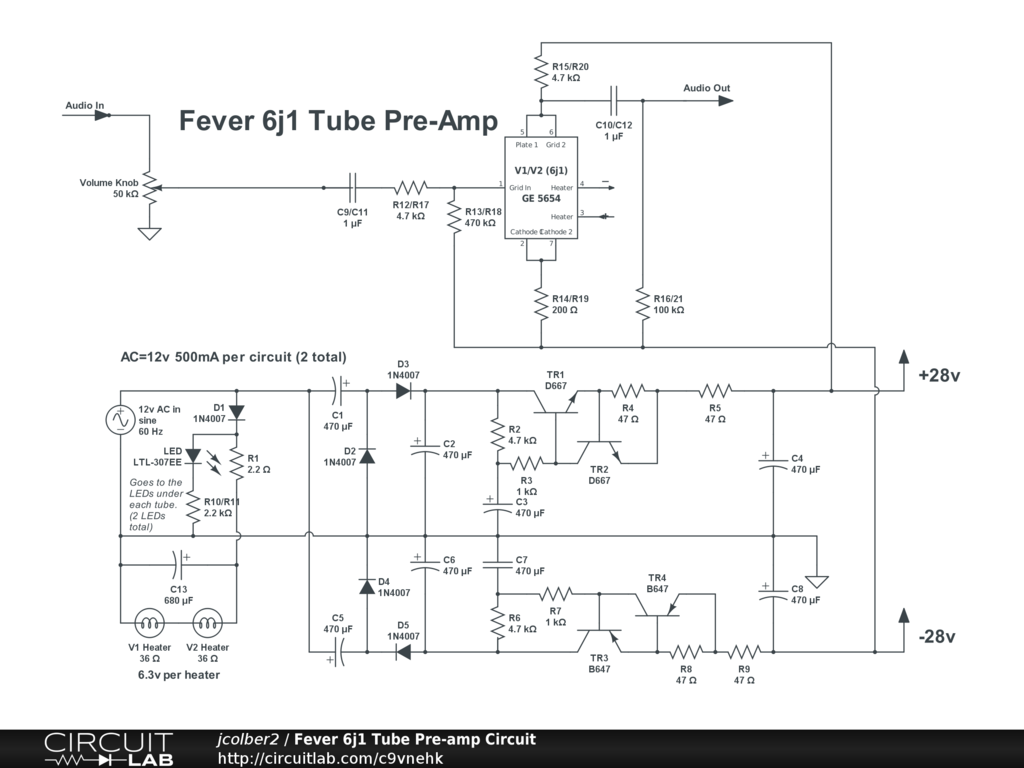

English Language Schematic for the "Fever 6j1 Pre-Amp" circuit. [Not Simulatable]

This is as close to a direct translation of a schematic I received for a headphone pre-amp I ordered from a seller in China as I could get without actually learning to read Chinese.

I was very unhappy when they neglected to send the English instructions they'd advertised and only provided what looked like a 100th order xerox copy of a schematic of the circuit.

Luckily the silk-screening on the board was good enough to get by.

Hopefully someone else will find this useful!
