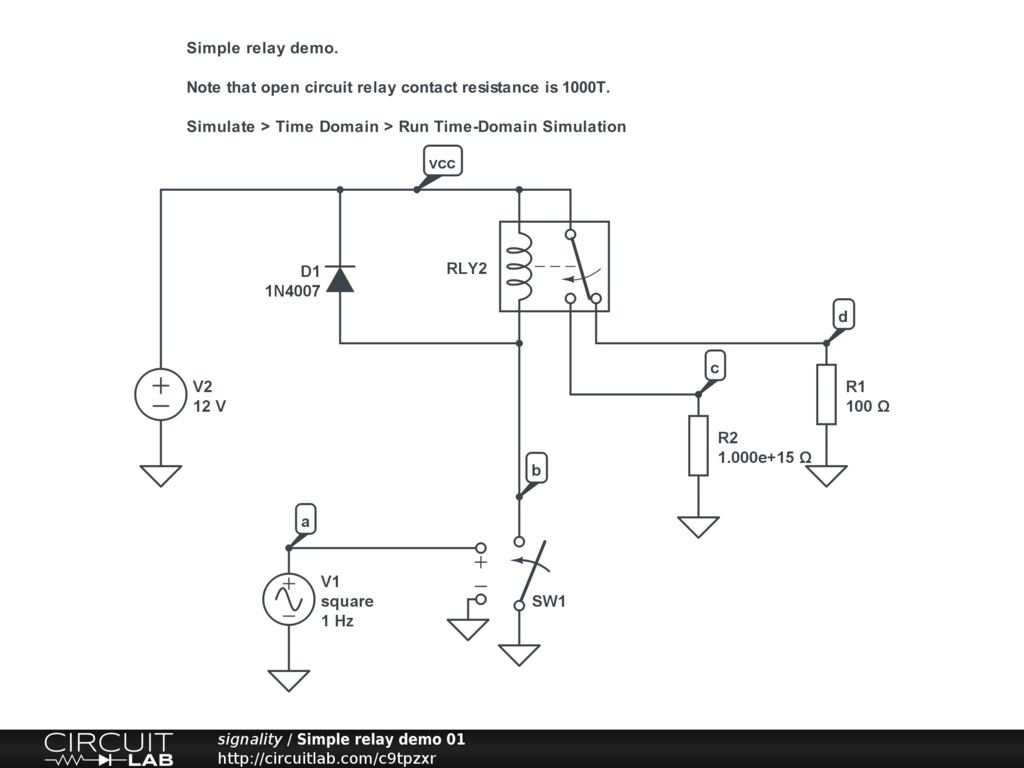

Simple relay demo. Note that open circuit relay contact resistance is 1000T. Simulate > Time Domain > Run Time-Domain Simulation
