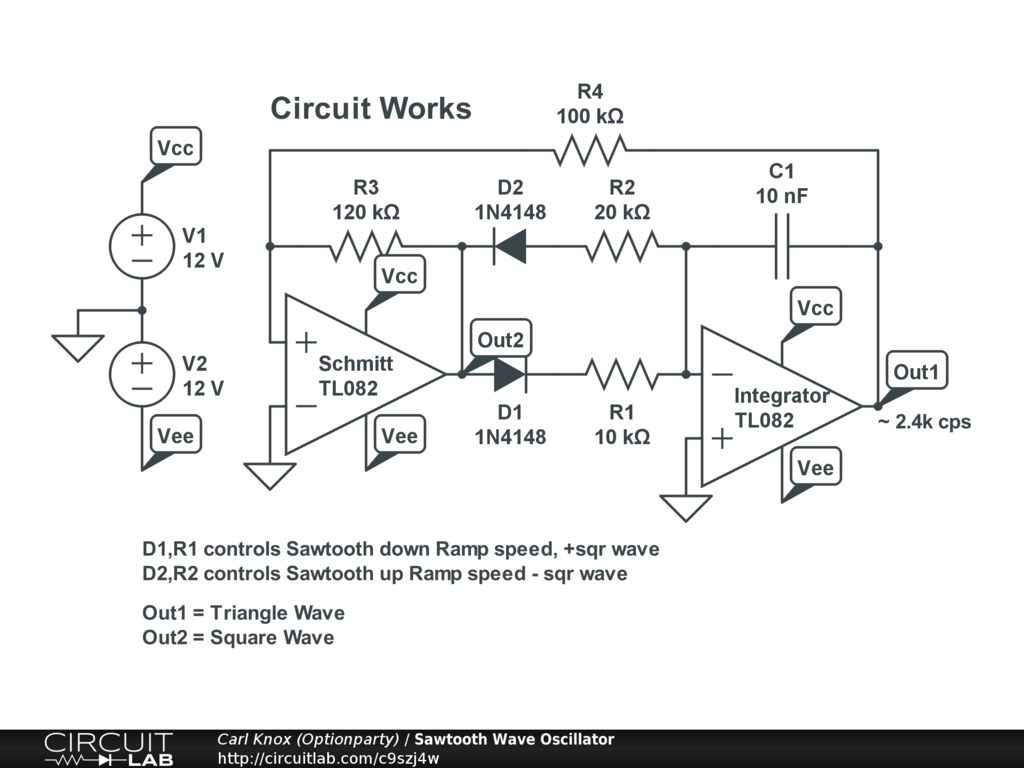

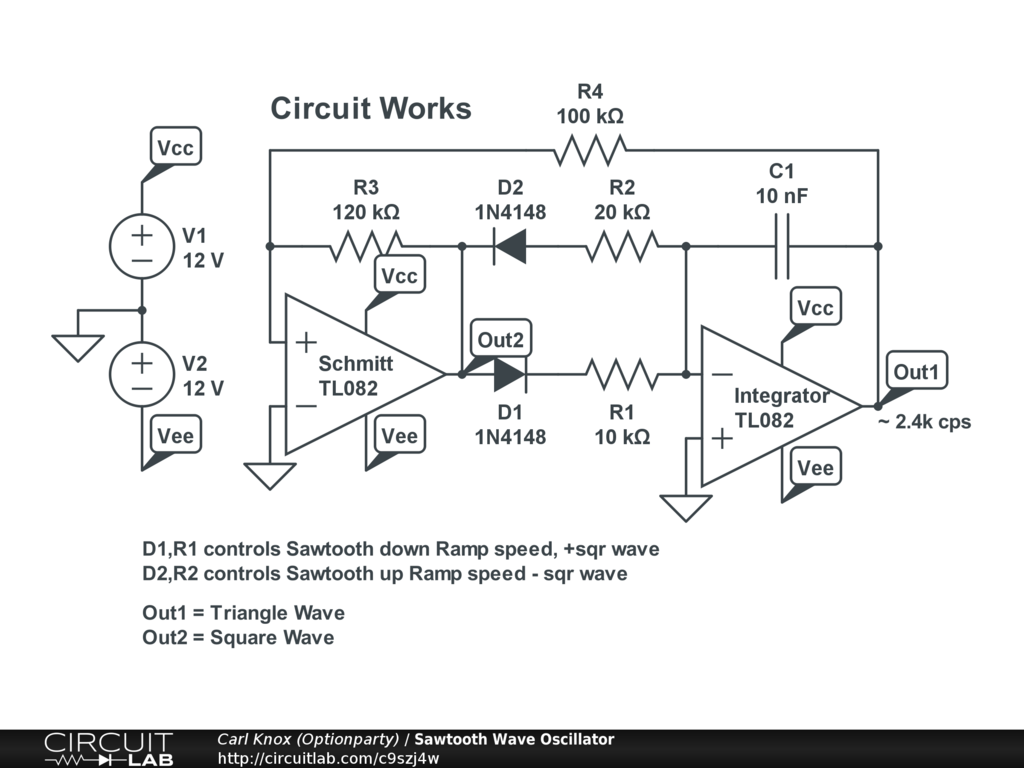

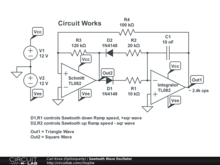

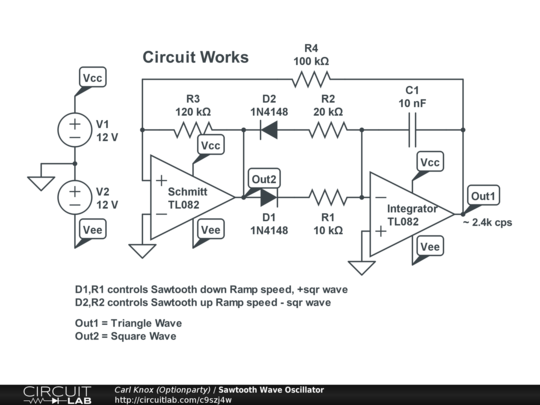

Sawtooth Wave Oscillator

Just a Building Block

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Independent control of up and down ramps,
makes available the modifying a Triangle wave to Sawtooth wave.

No comments yet. Be the first!
