Still under development. High 'Q' will extend Ringing time.


LCQ- and LCQ alternatively are charged, then are aloud to "Ring" down like a bell.
A free running "Ringing" LC circuit has no feedback or heavy load to influence frequency.

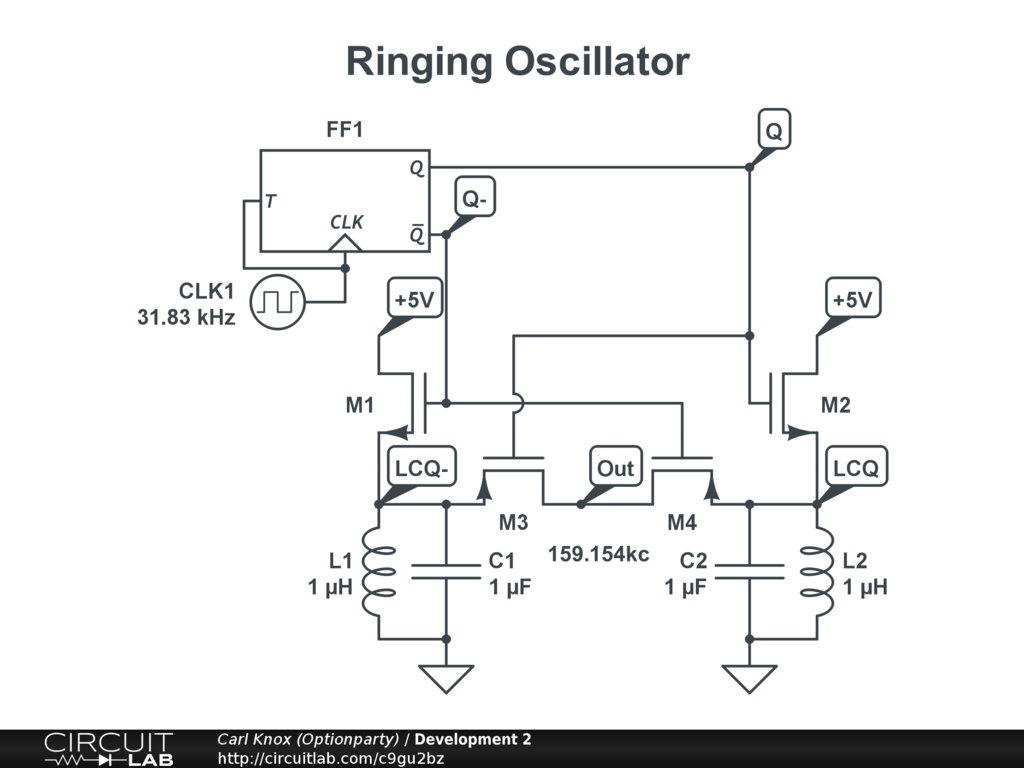

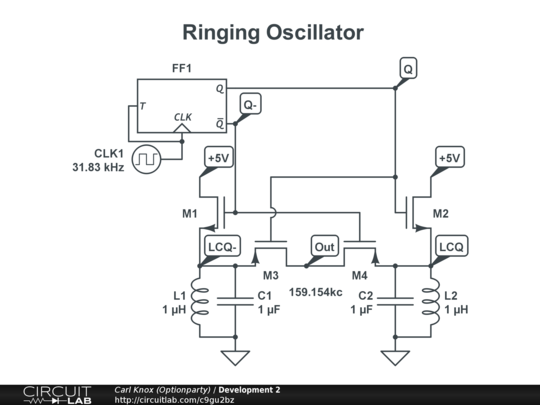

The circuit shown, the Clock is set to 5 cycles of the LC tank frequency, this could be derived from,
"amplifying" the output, sending it to a "comparator", then a "Divide by".
The longer the "Ringing", the purer the output.
