Tags label   label-voltage-source   net-name

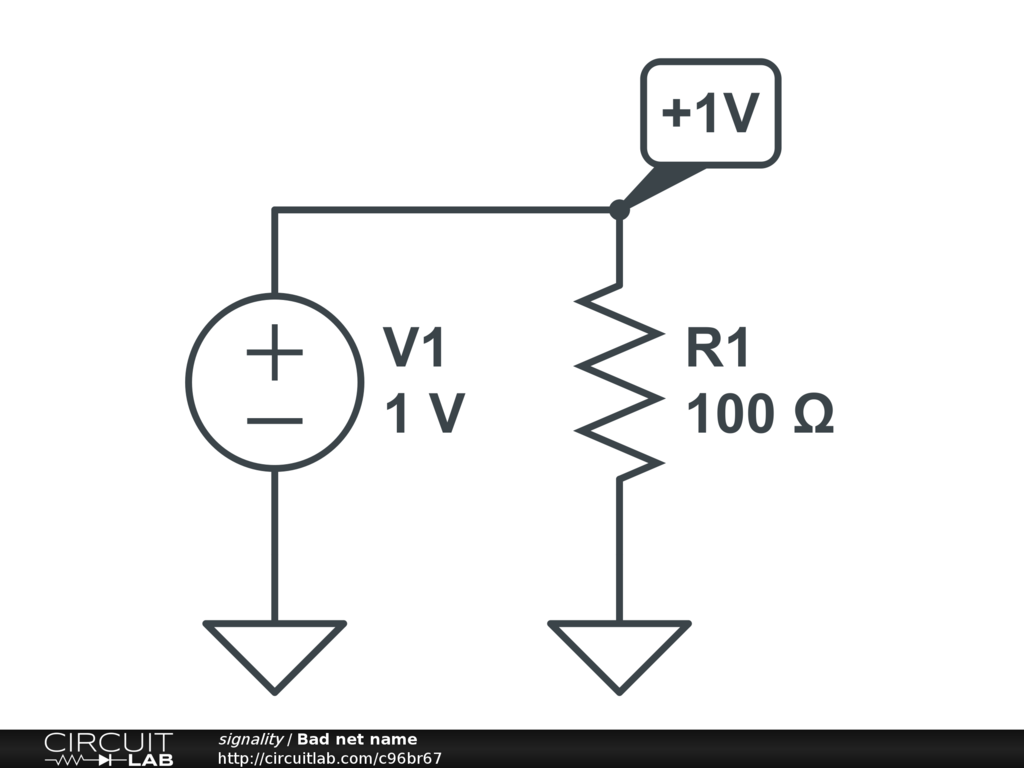

The +1V or +1 netname invokes an implicit 1V source. CL then complains because the explicit 1V source, V1, is then in parallel with the implied source.


Not provided.
