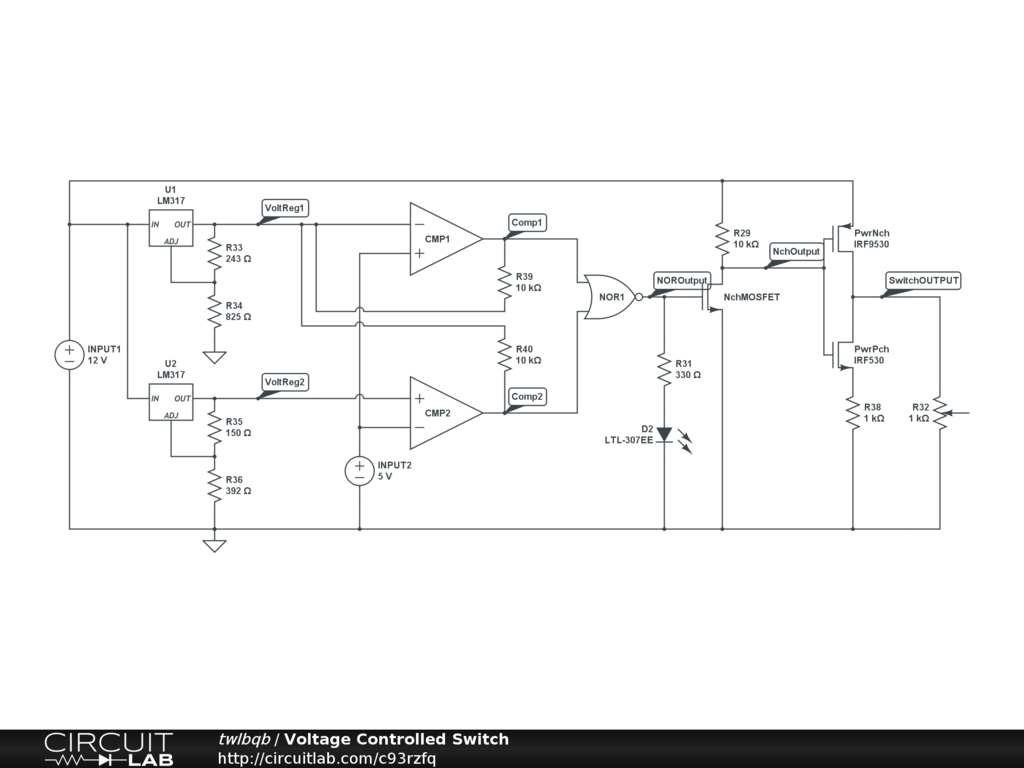

Voltage Controlled Switch

Created by	twlbqb
Created	May 29, 2012
Last modified	May 30, 2012
Tags	cmos comparator controlled dual-input logic mosfet switch voltage voltage-regulator

The 12VDC Output is only ON when the 5VDC input is within 10% (4.5 to 5.5). The range can be changed by adjusting the Voltage regulators.
