how to draw arrows in CL 01

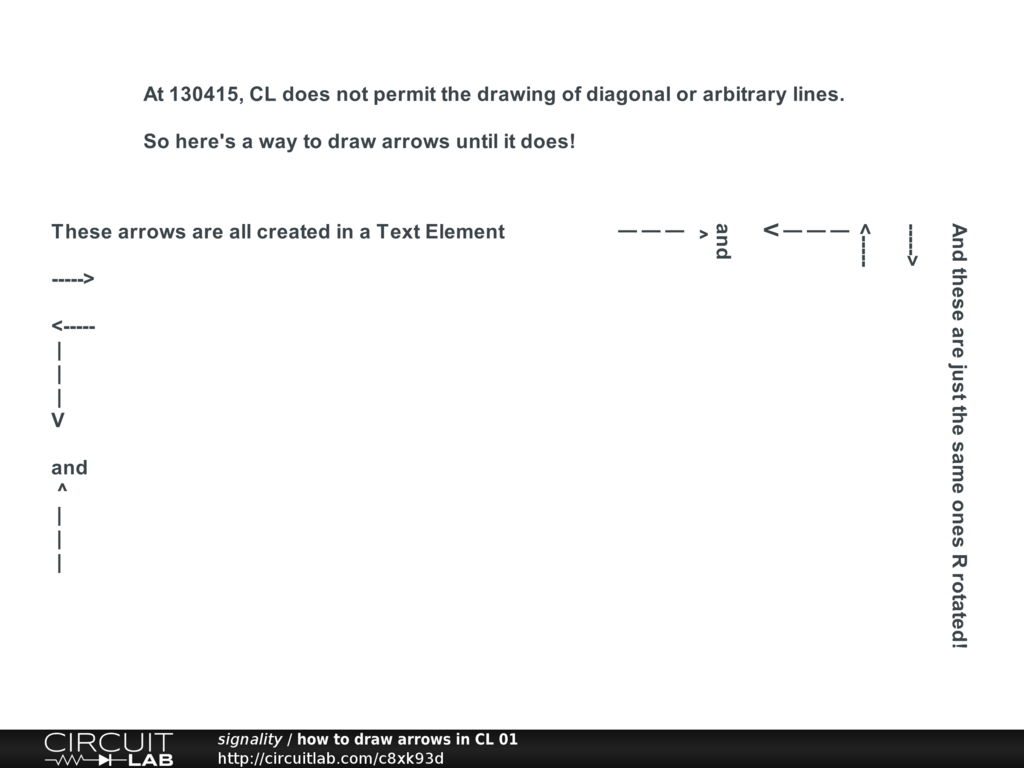

At 1304015, CL does not permit the drawing of diagonal or arbitrary lines.

So here's a way to draw arrows until it does!

Note that rotated arrows may not end up quite where you expect.
