Summary

Joule Thief circuit.

CL have changed something in the simulator because this used to run with the sim set up as. Now, it does not show the exponential rise of V1 and does not start oscillating unless the "skip initial" box is set to "Yes".

Simulate > Time Domain > Run Time-Domain Simulation


Description

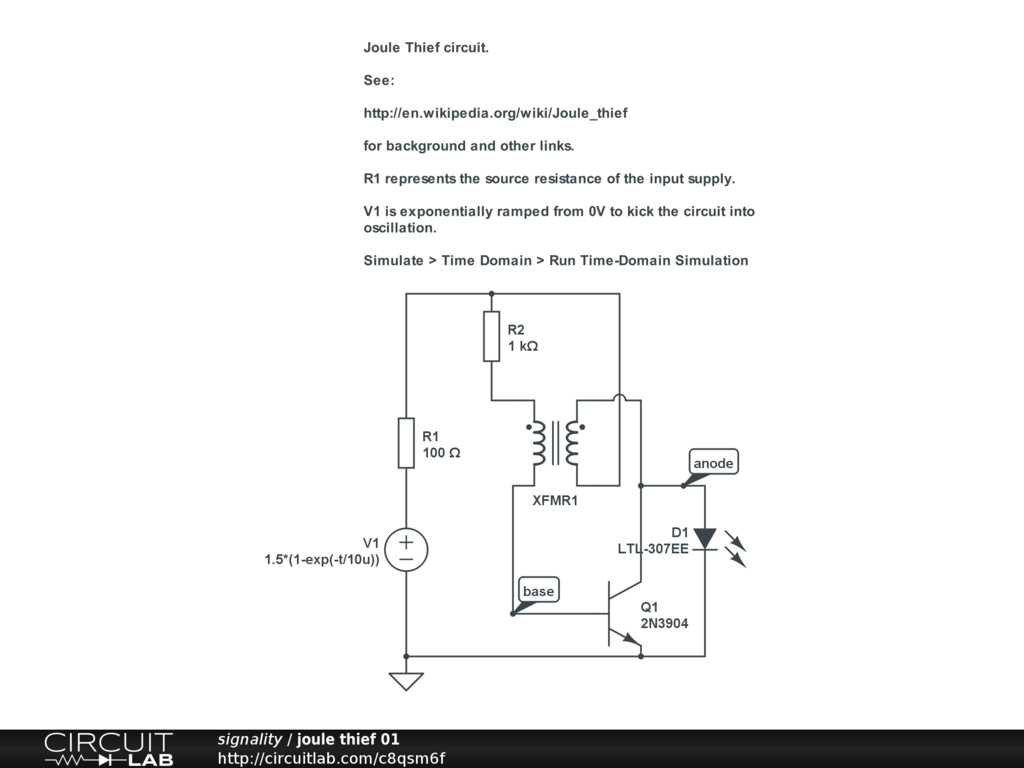

Joule Thief circuit.

CL have changed something in the simulator because this used to run with the sim set up as. Now, it does not show the exponential rise of V1 - which it should - and does not start oscillating unless the "skip initial" box is set to "Yes".

For a working simulation please see:

http:///project_view_A-simple-Joule-Thief-circuit._ymSasKEVd.htm

See also:

http://en.wikipedia.org/wiki/Joule_thief

for background and other links.

R1 represents the source resistance of the input supply.

V1 is exponentially ramped from 0V to kick circuit into oscillation.

Simulate > Time Domain > Run Time-Domain Simulation
