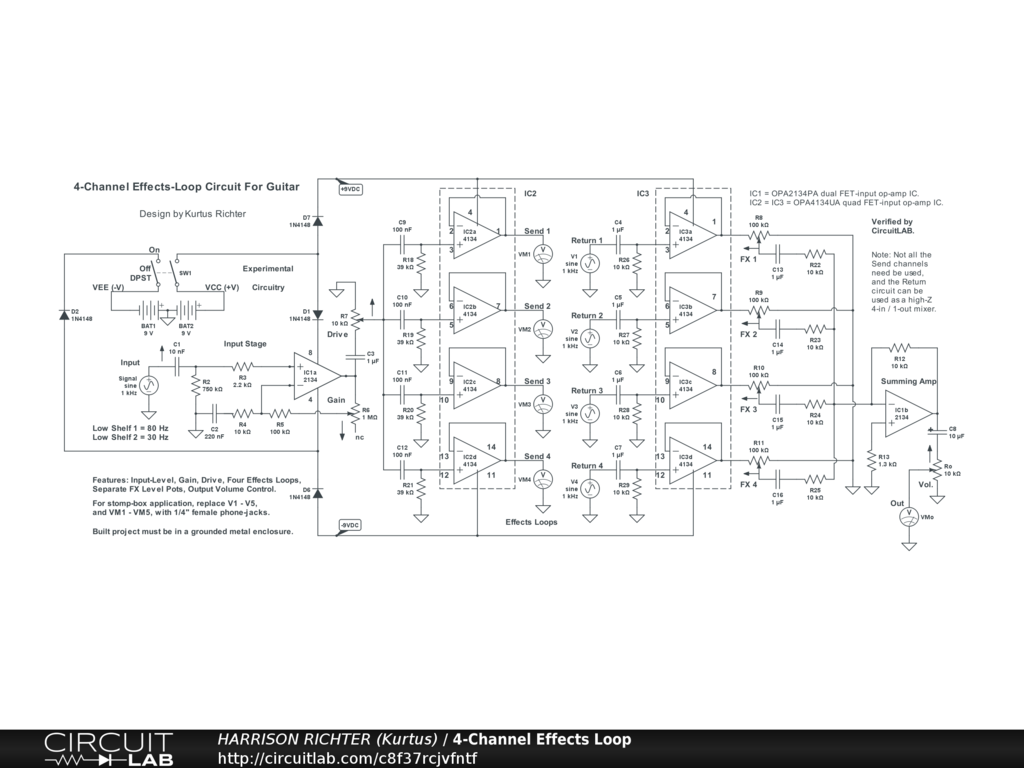

4-channel effects loop circuit for guitar.
4-channel effects loop for guitar. Includes Input Level control, Input Gain control, Drive control, 4 effect sends, 4 effect returns, 4 separate Effect level controls, and output Volume control. May be used with any combination of four stomp-box effects, guitar preamps, or guitar processors. Output suitable for sending to any audio equipment, including guitar amplifier, recording gear, or other active devices.
