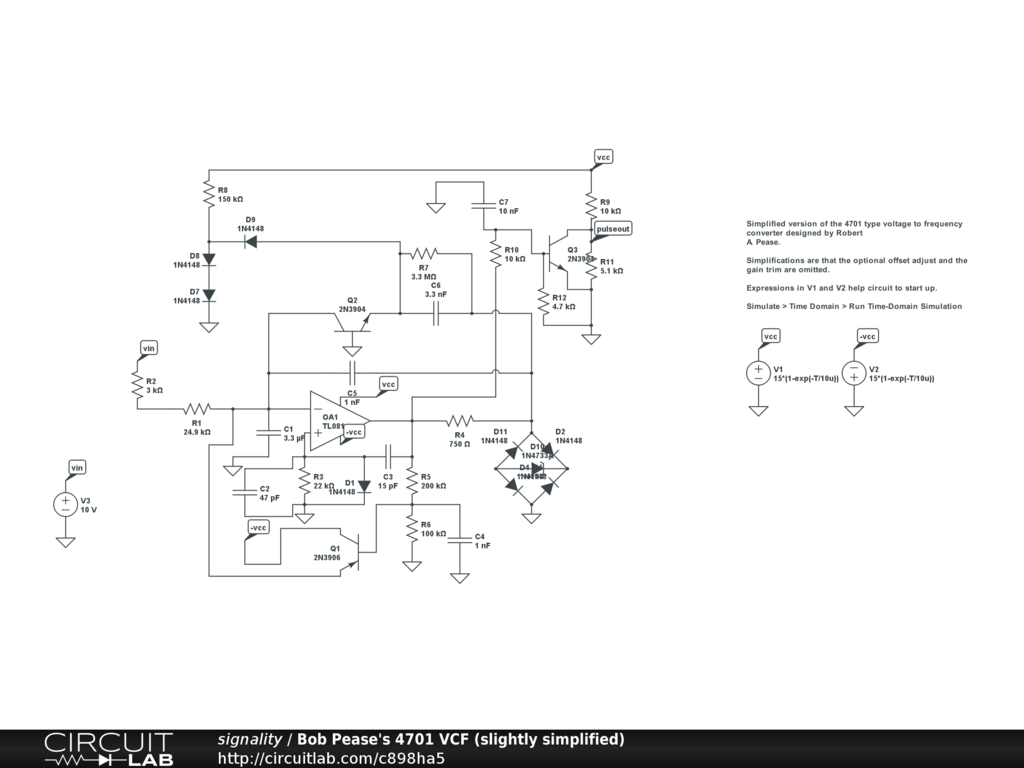

Simplified version of the 4701 type voltage to frequency
converter designed by Robert
A. Pease.

Simplifications are that the optional offset adjust and the
gain trim are omitted.

Expressions in V1 and V2 help circuit to start up.

Simulate > Time Domain > Run Time-Domain Simulation
