741 schematic op amp circuit PUBLIC

Created by
Created November 27, 2019
Last modified December 09, 2019
Tags 741   opamp   schematic

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

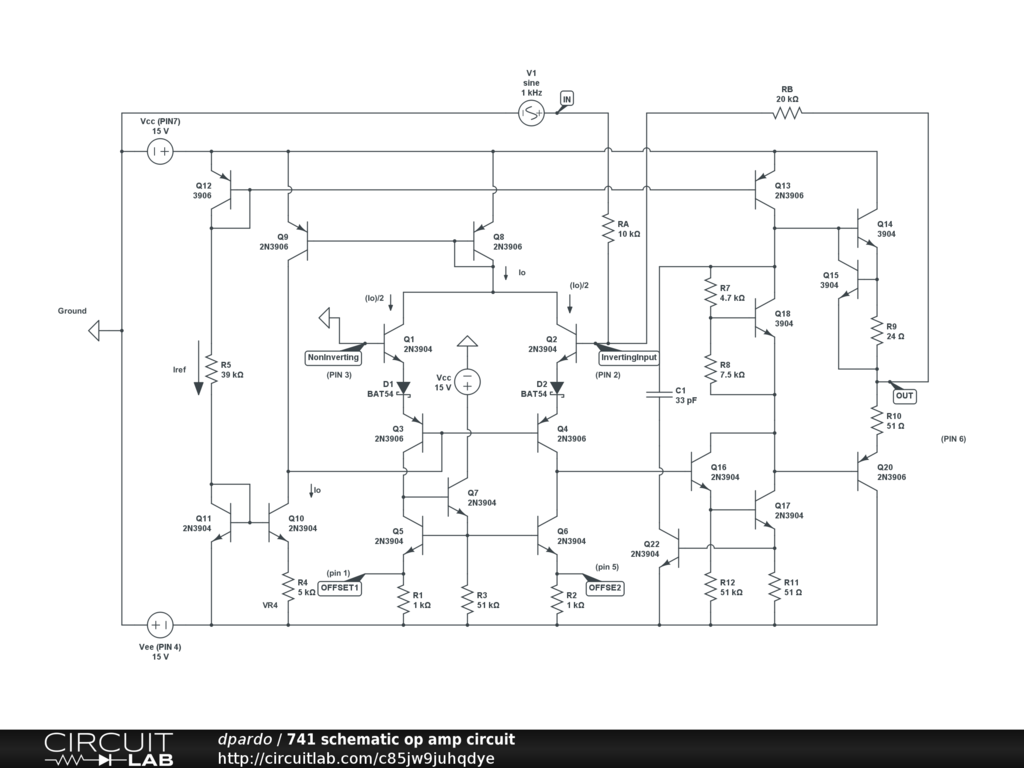

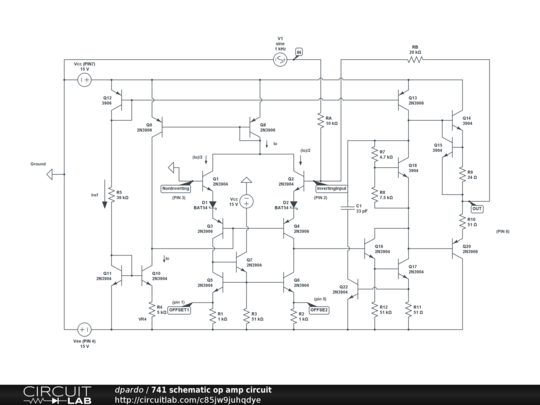

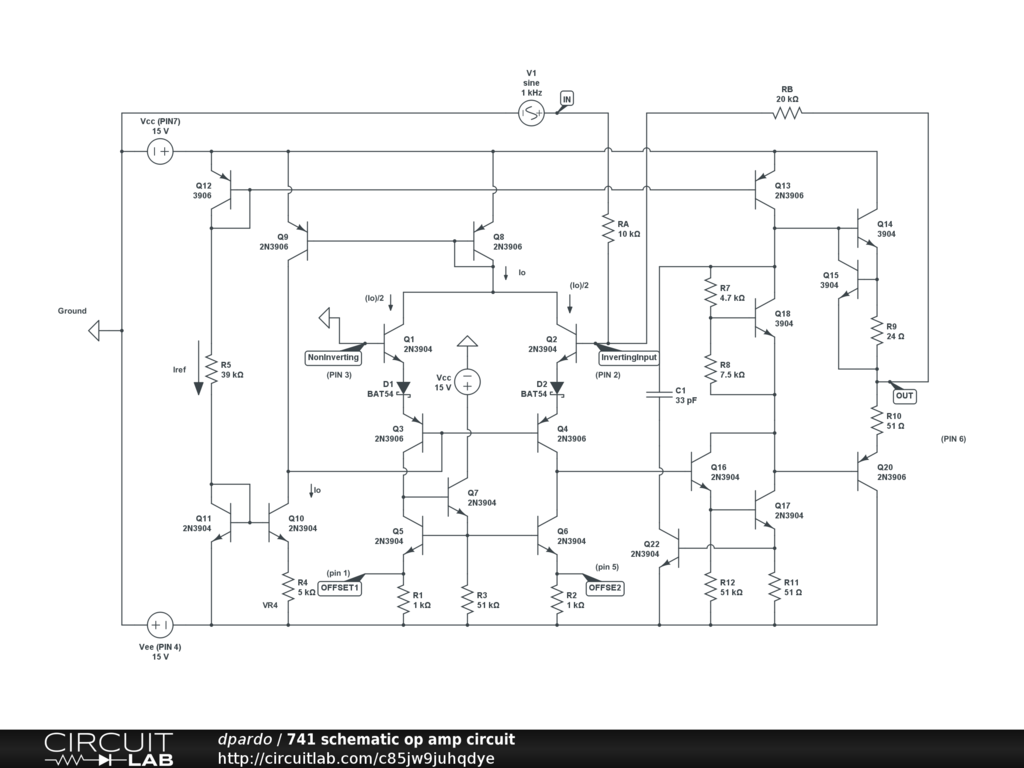

Internal schematics of the 741 operational amplifier (op amp) circuit. This 741 has been configured with a gain of 2, from negative feedback.
