LDR switched LED 02

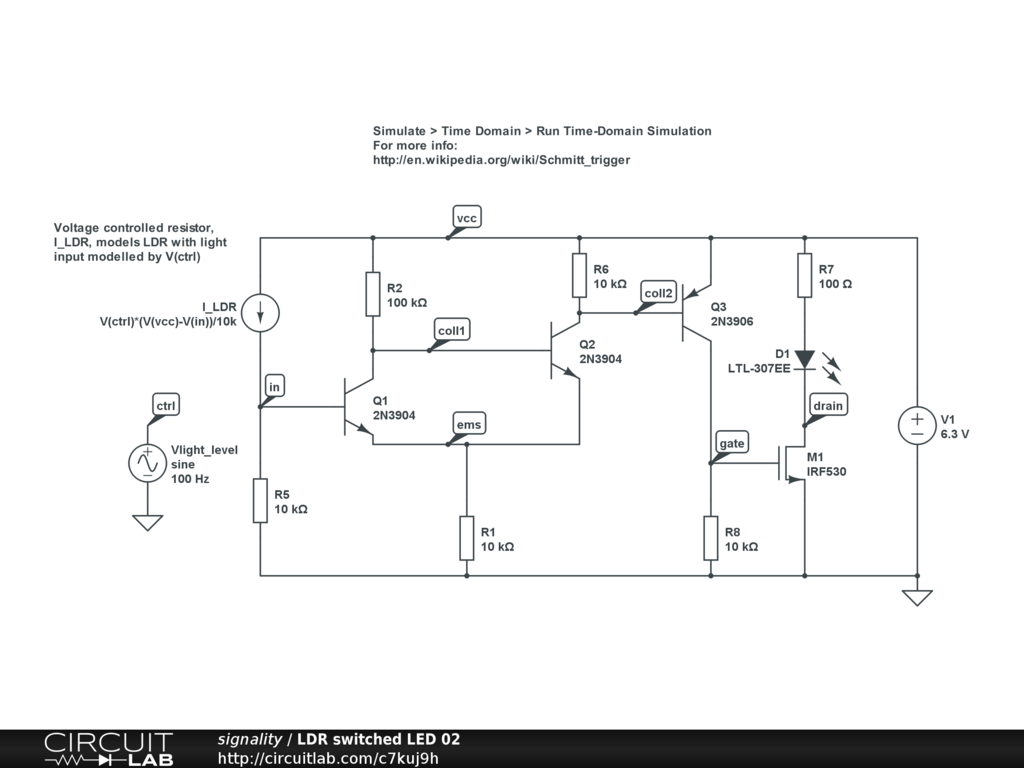

Same as LDR switched LED 01 but voltage controlled resistor, I_LDR, models LDR with light input modelled by V(ctrl)
