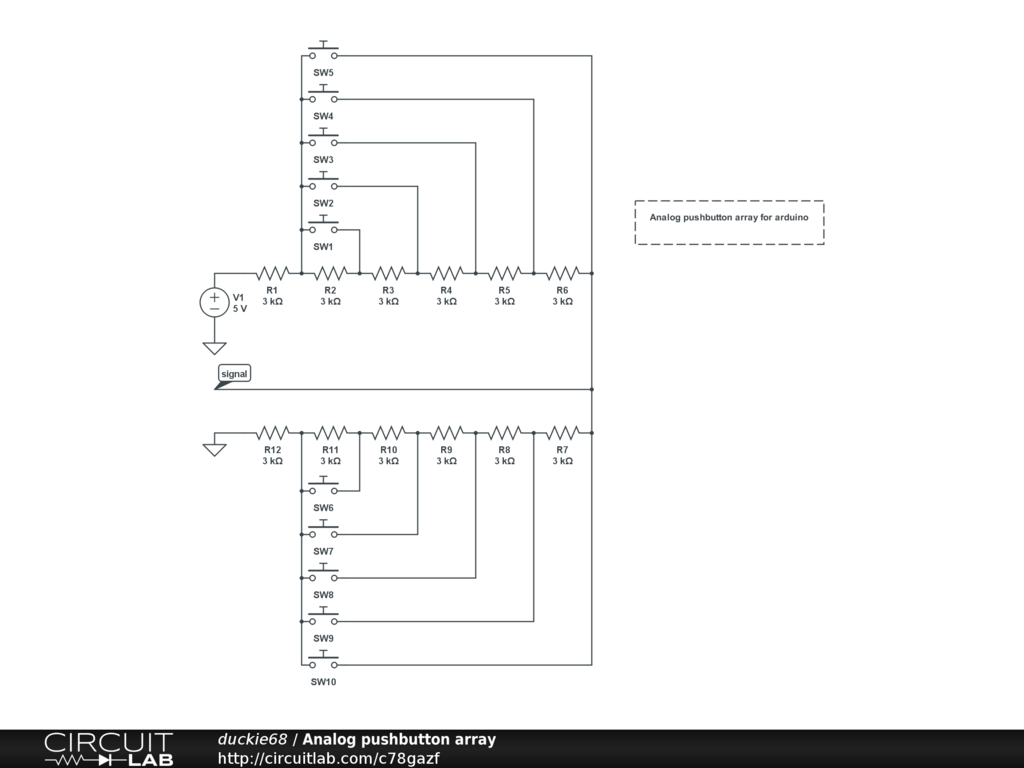

This is a simple pushbutton array that outputs an analog signal. Resistor values may be any, but use the same values for ease. The arduino serial output can sense the voltage and be used to fine tune your sketch. Also see for more information.
