Tags ac-to-dc   power-supply   transformer


Not provided.

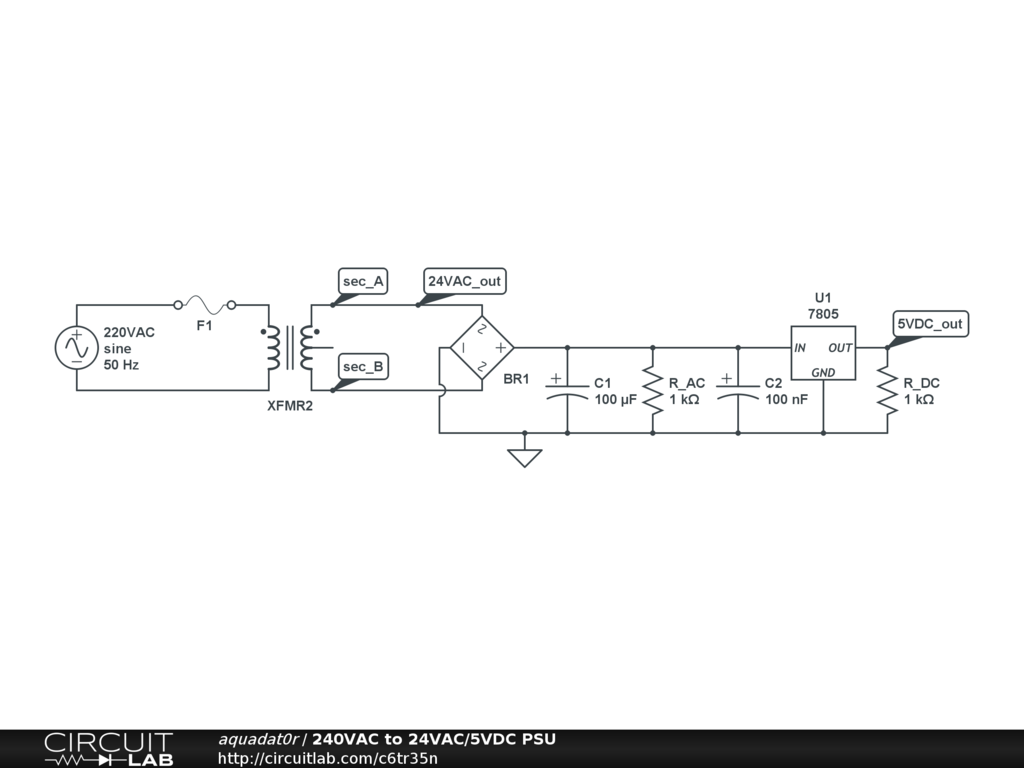

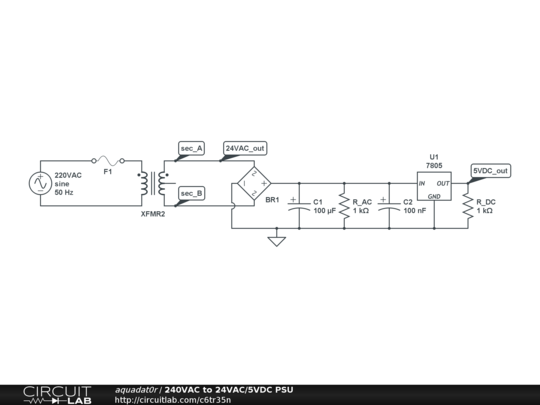

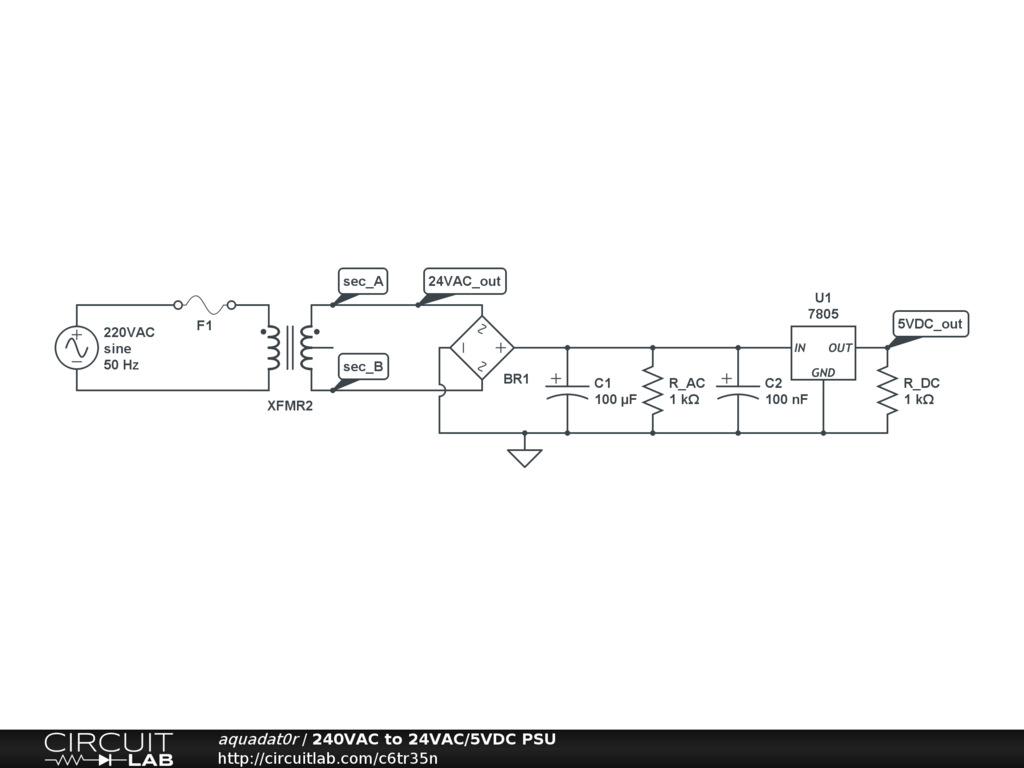

This is a power supply that provides 24VAC as well as 5VDC


the 7805 will has to drop voltage from over 30V to 5V! Better use the middle terminal of the transformer for DC generation.

by speedy
May 18, 2012

ok i tired simulating this circuit in the editor and it wouldnt give any vout or Vin

by Honers123
February 15, 2013
