parametric ideal diode 01

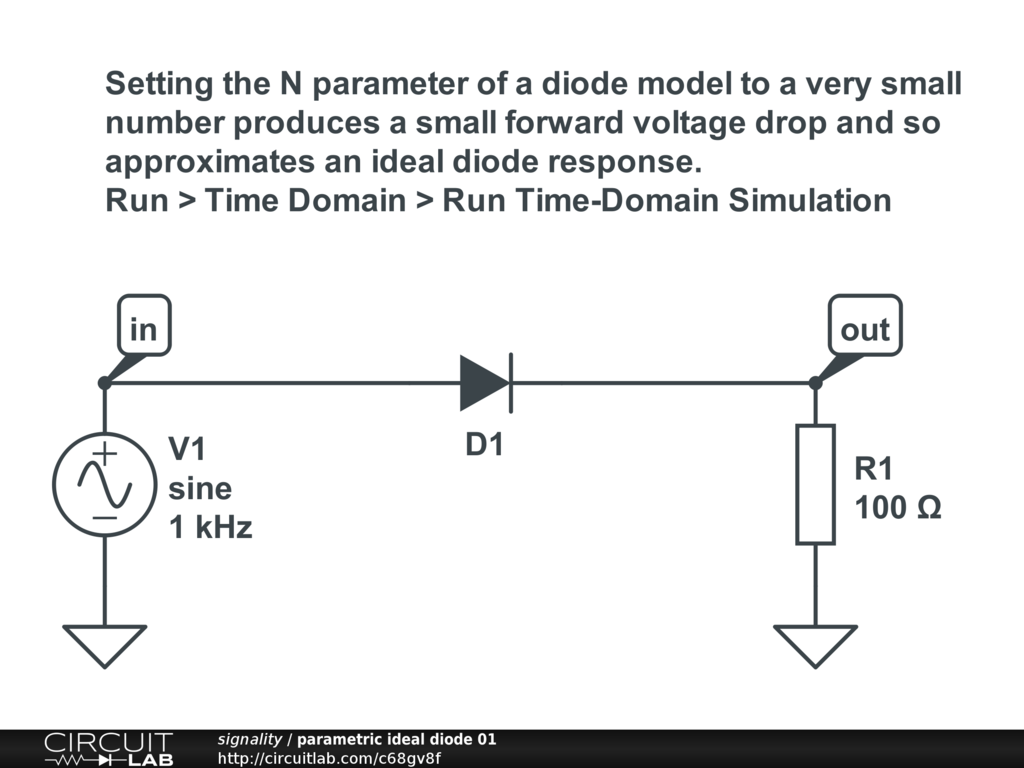

Setting the N parameter of a diode model to a very small number produces a small forward voltage drop and so approximates an ideal diode response.
