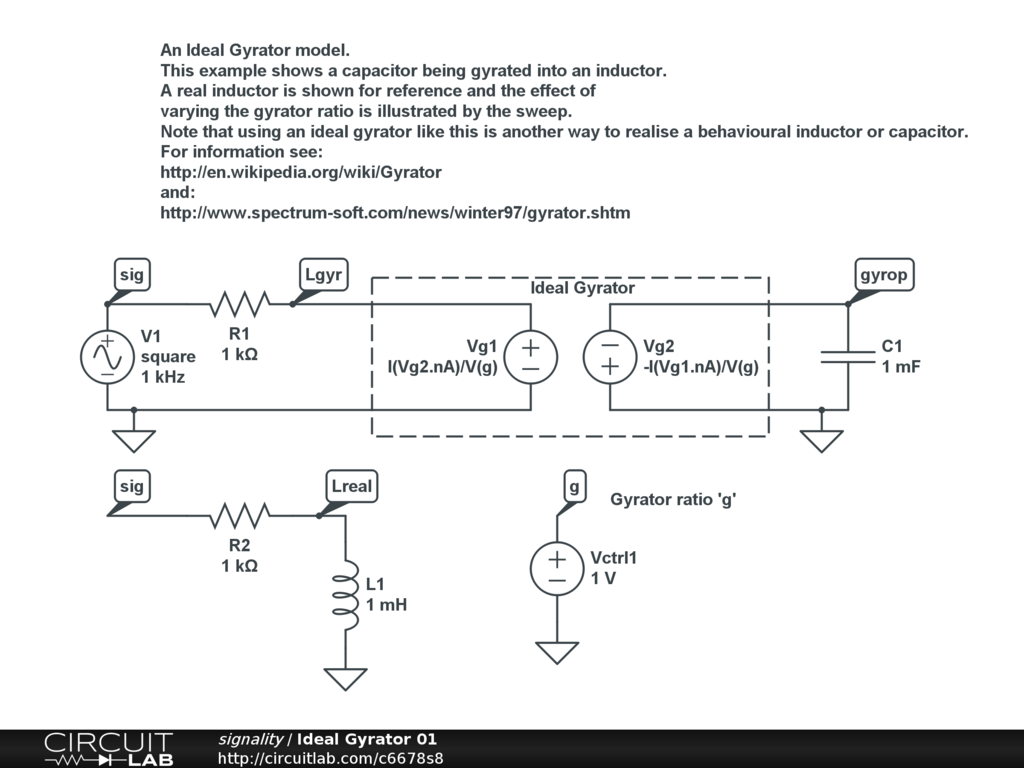

An Ideal Gyrator model.
This example shows a capacitor being gyrated into an inductor.
A real inductor is shown for reference and the effect of
varying the gyrator ratio is illustrated by the sweep.
Note that using an ideal gyrator like this is another way to realise a behavioural inductor or capacitor.
For information see:
http://en.wikipedia.org/wiki/Gyrator
and:
http://www.spectrum-soft.com/news/winter97/gyrator.shtm
