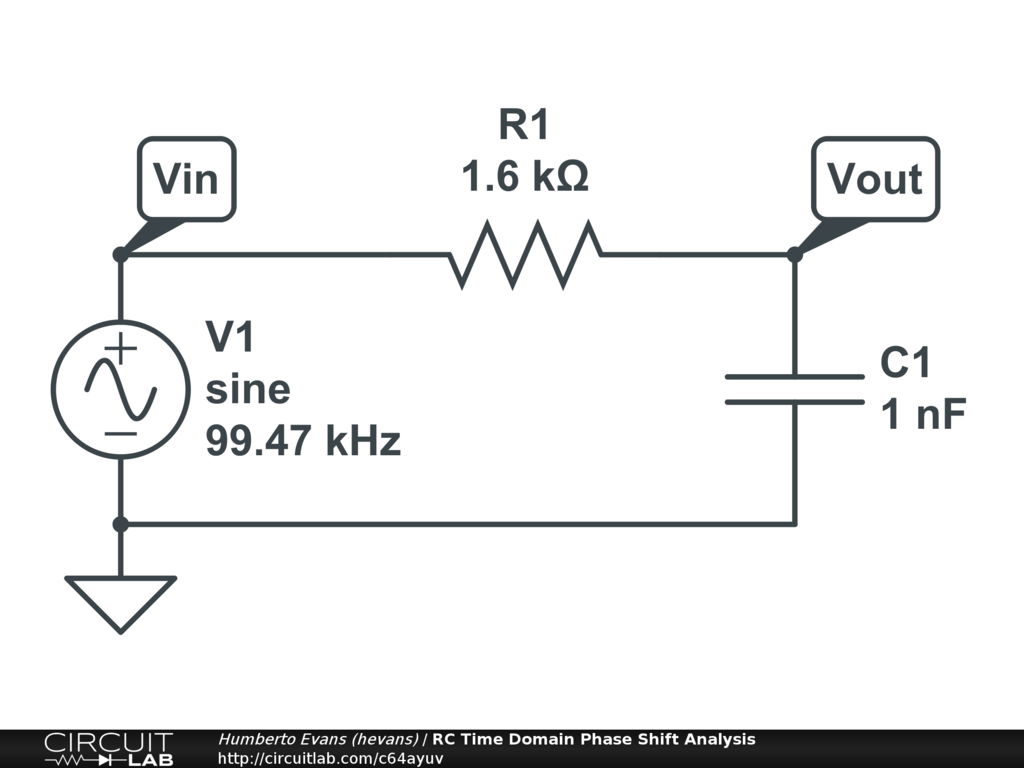

This is an RC circuit mean to explore the phase shift characteristics of an RC circuit for different frequencies.


Try a time domain simulation and notice the shift in the sine wave from input to output. Change the frequency of the sine wave input: try 50kHz and 500kHz. How is the phase shift affected?
