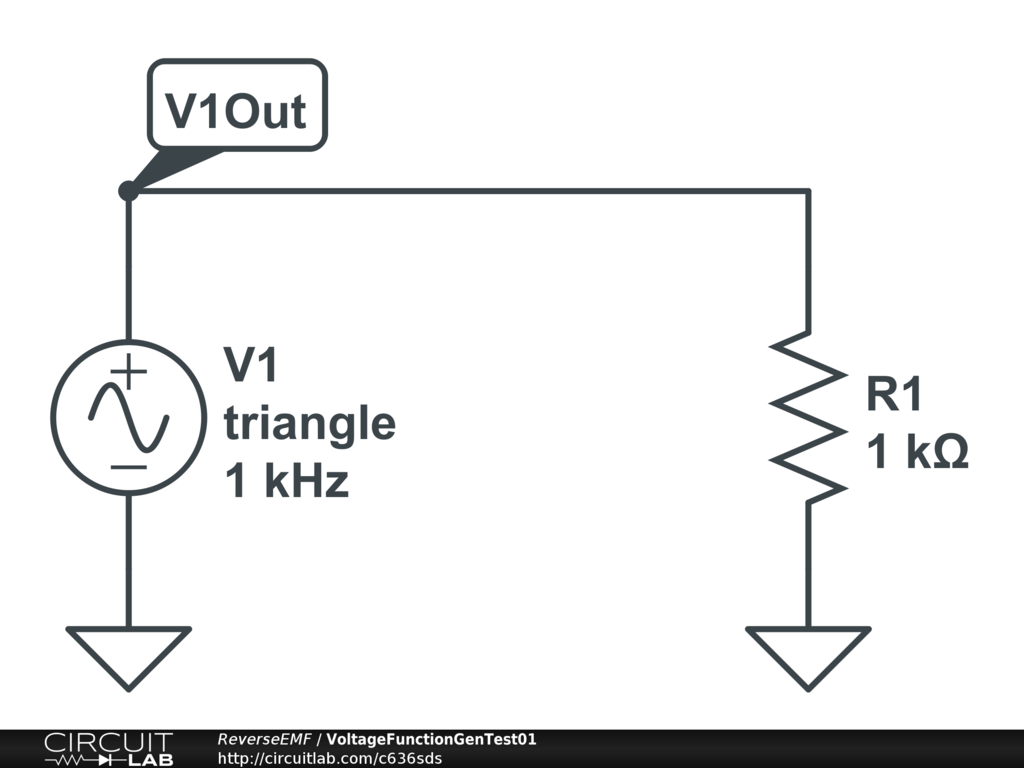

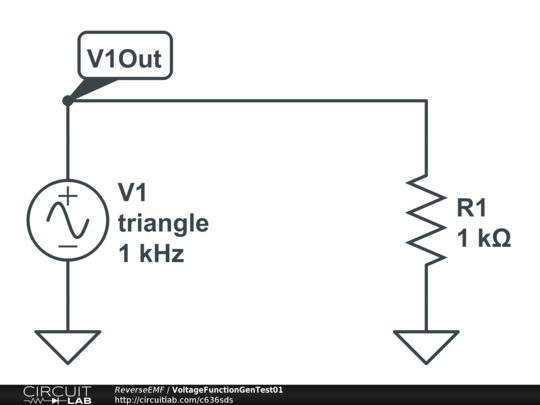

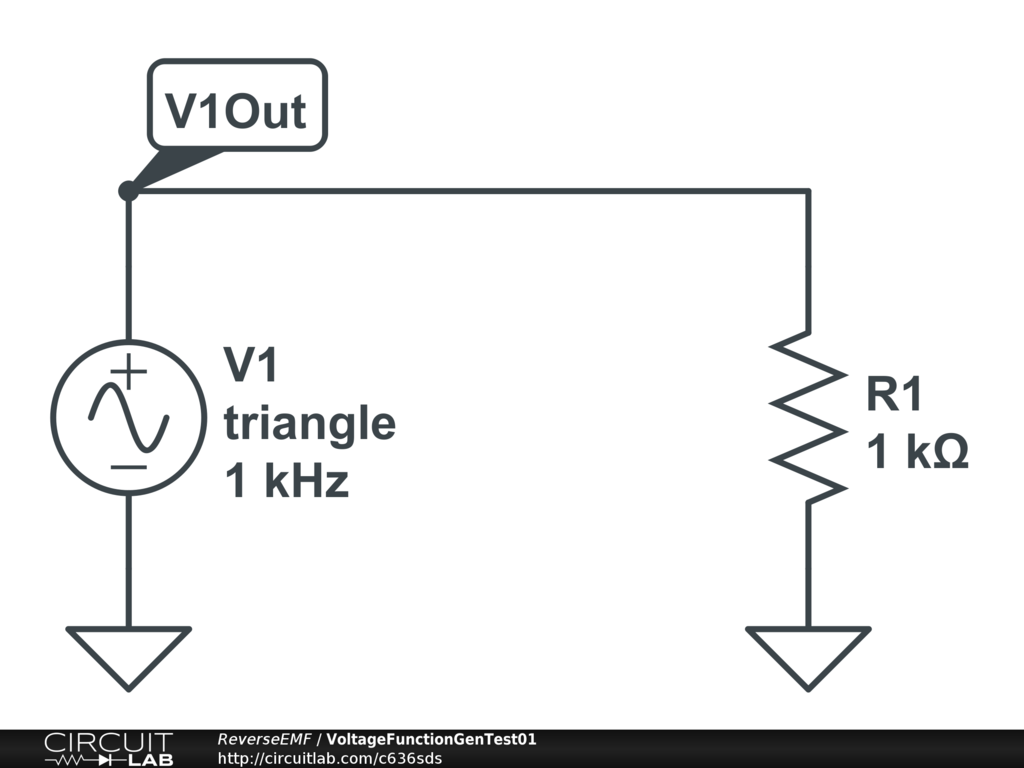

A simulation of the Voltage Function Generator to Demystify the settings.


Demystification of the Voltage Function Generator -- i.e. setting the Output Voltage, the Offset Voltage, and Phase to get the signal you desire.

Currently this example is set for a 1 Volt Peak to Peak Triangle Wave that begins at 0 volts, rises to 2 volts and then falls back to 0 volts. The Phase is set to 90 to cause it to start at 0 volts rather than the default 1 volt.
