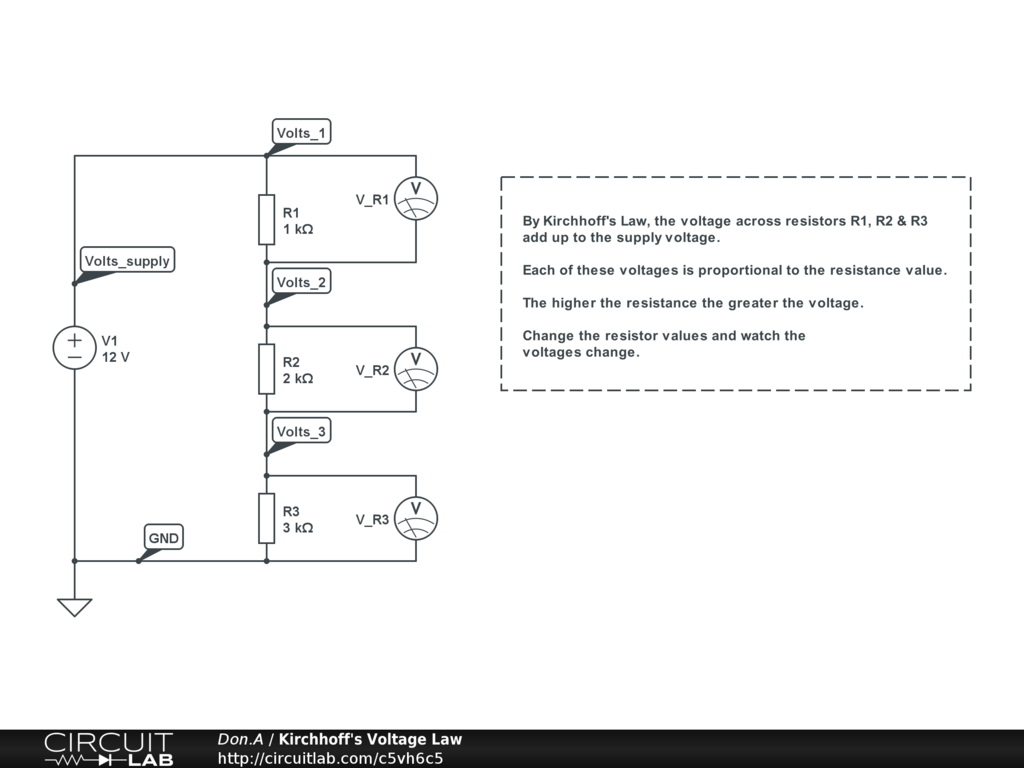

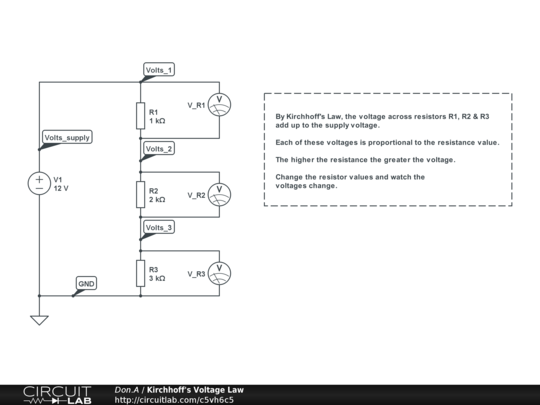

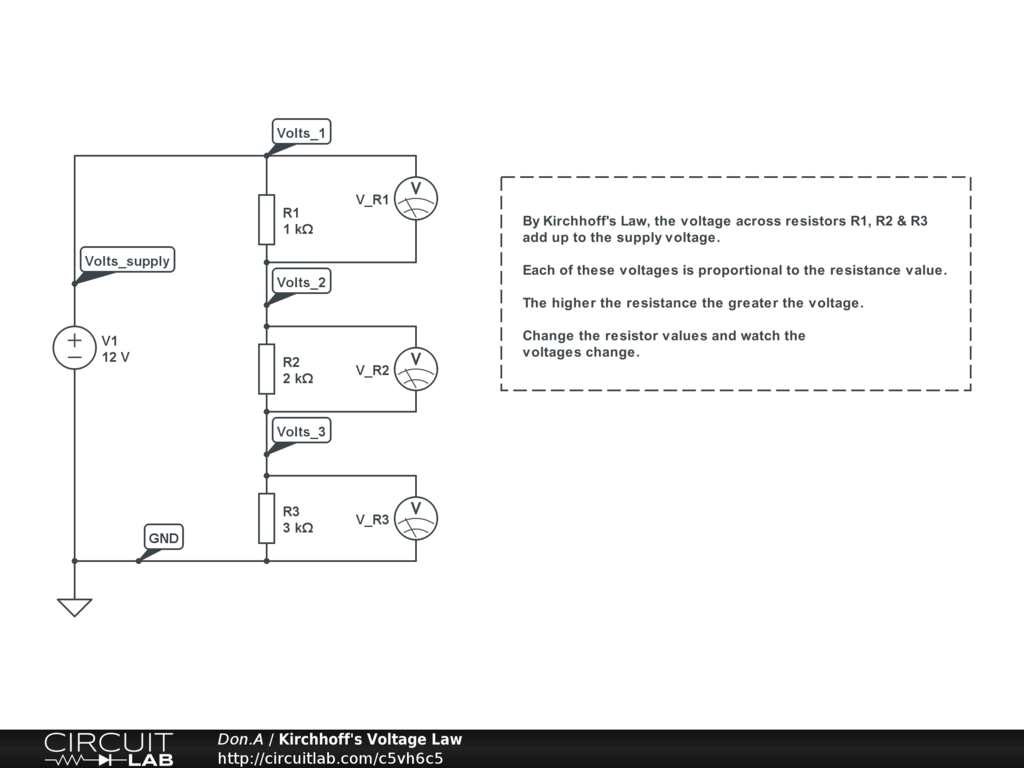

3 resistors with single voltage supply -- Kirchhoff's voltage law


Description

Using the DC solver all voltages in the circuit are measured. The user can change the resistor values and review the results.

A physical Lab module is available from www.microcreations.co.nz which enables students to use actual meters to gain practical measuring skills. These modules are powered by 12V Battery Packs of main 12V plug pack.
