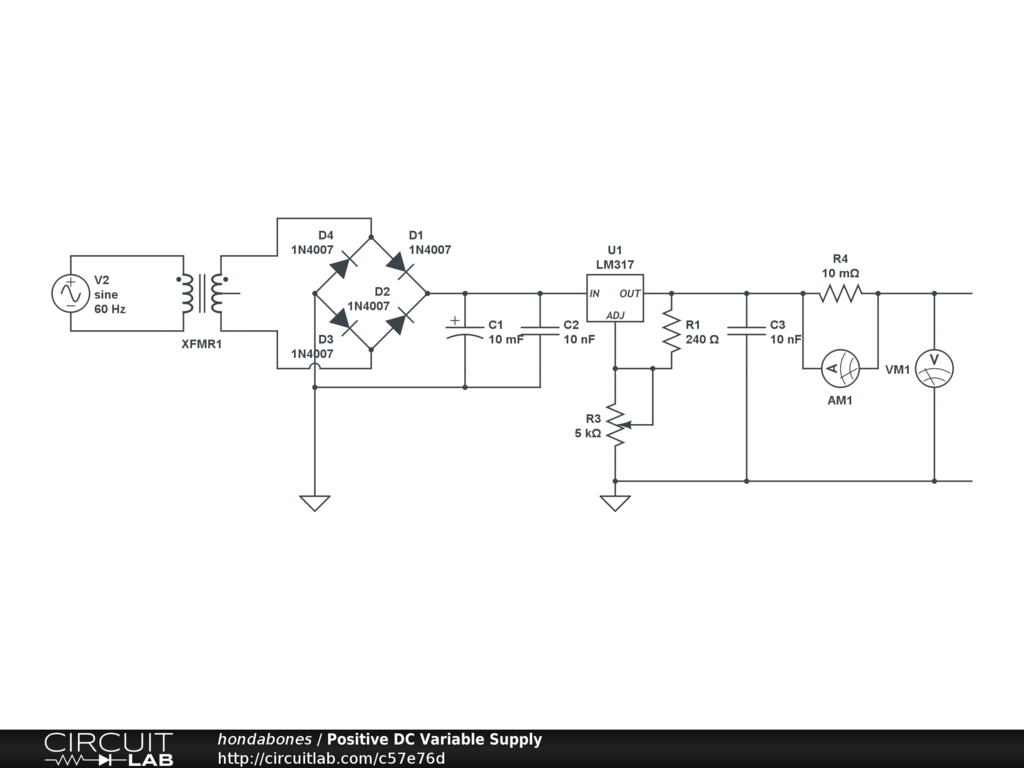

Positive DC Variable Power Supply 1.2 volts to 41.2 volts.


Positive DC Variable Power Supply using an LM317 regulator. The datasheet indicates it is capable of doing a 40 volt difference between the output and the input. Depending on how you set up your front end you could get different action on the output. i.e. 30VDC-70VDC with a little over 70VDC on the input.
