XNOR BJT Circuit

Created by	digitalcircuitman777
Created	March 25, 2012
Last modified	March 27, 2012
Tags	bjt-transistor digital digitalcircuitman777 logic-gate ttl xnor

This is how I constructed an XNOR TTL Logic Gate using NPN BJT transistors.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

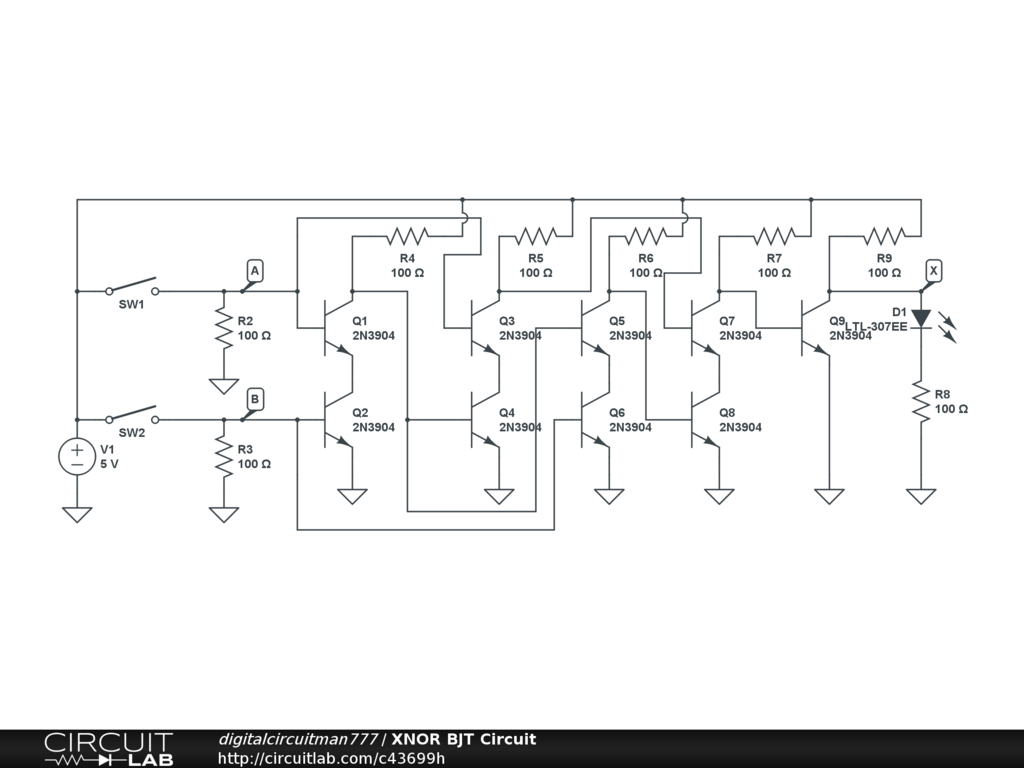

An XNOR TTL Logic Gate using NPN BJT transistors.
