Radio Shack photodetector 01 PUBLIC

Created by
Created December 19, 2012
Last modified December 19, 2012
Tags optical-receiver   photo-detector   photodiode   transimpedance-amplifier

Summary

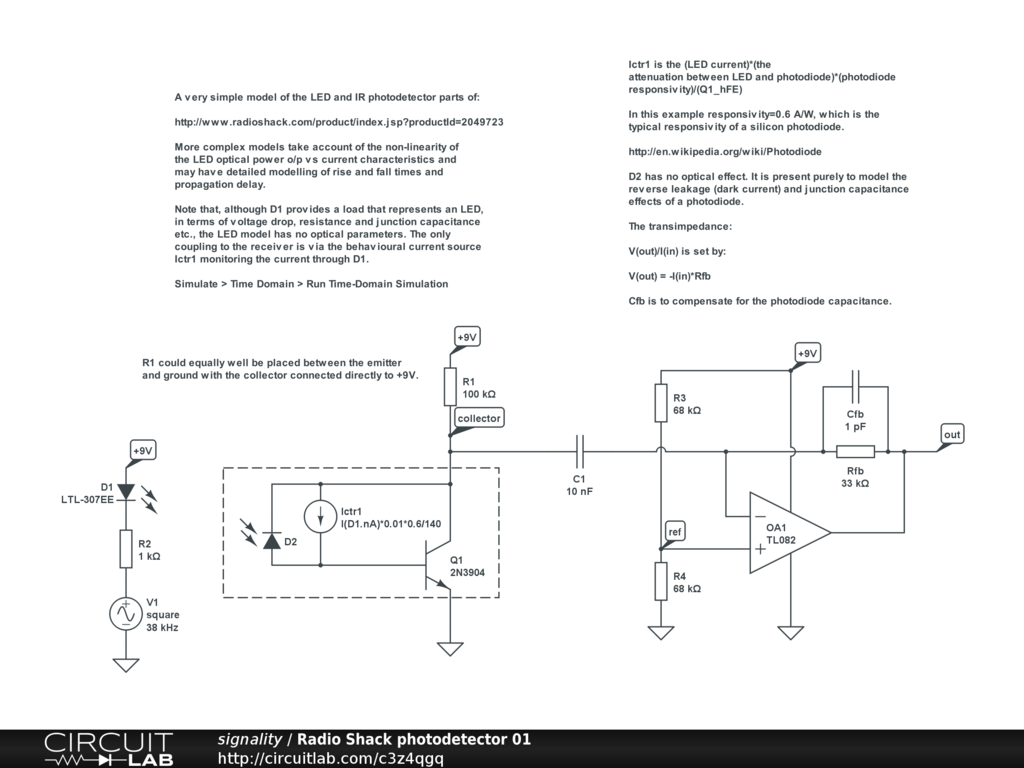

A very simple model of the LED and IR photodetector parts of:

http://www.radioshack.com/product/index.jsp?productId=2049723

Simulate > Time Domain > Run Time-Domain Simulation

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Not provided.
