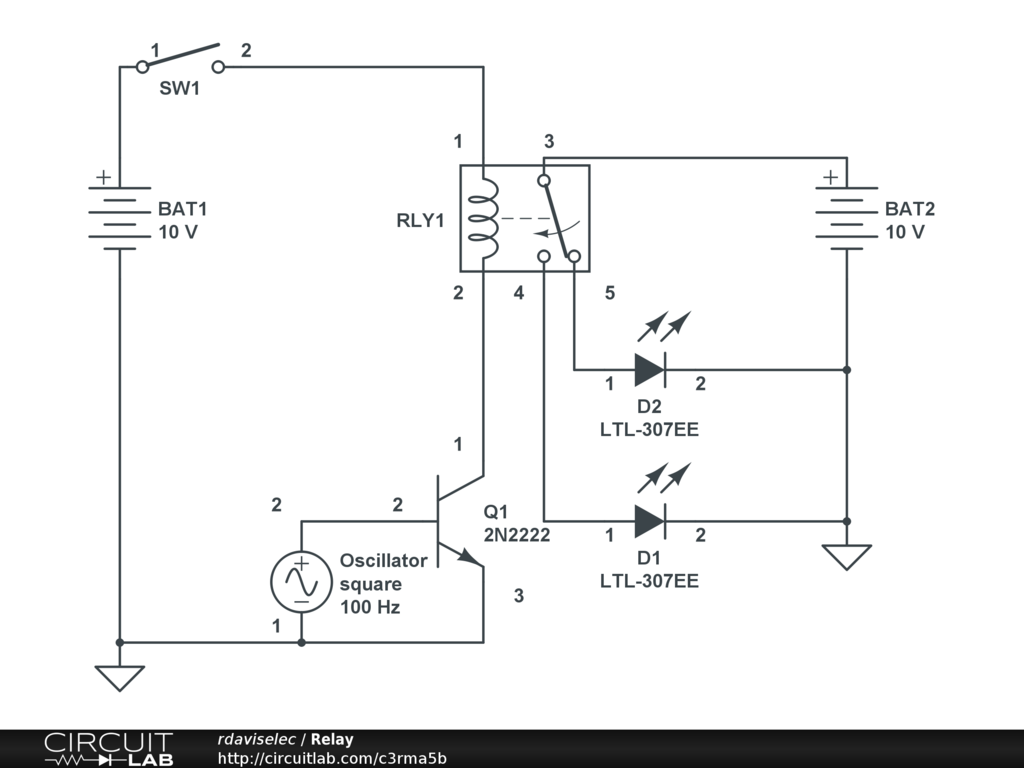

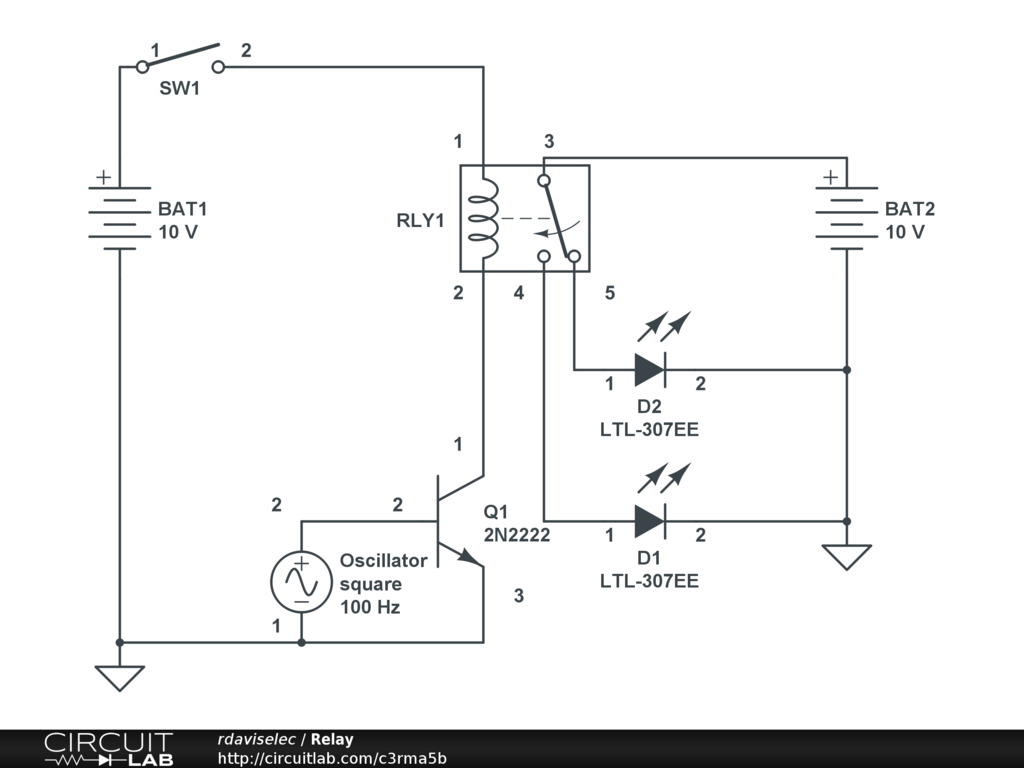

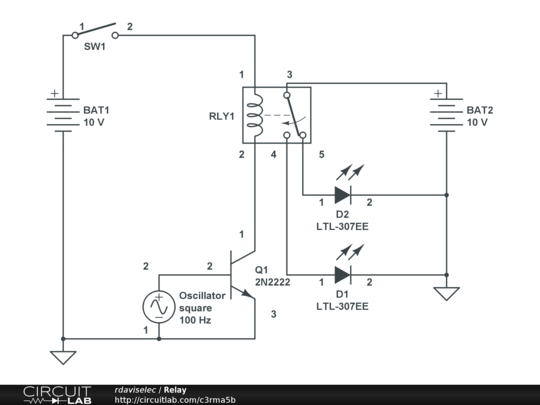

A simple relay circuit hooked up to a oscillator.


This circuit causes D1 and D2 to flash between each other. If the switch is left on then D2 will not flash but instead stay on.
