expression in arbitrary source ignored with swept voltage values

Created by	signality
Created	December 12, 2012
Last modified	December 12, 2012
Tags	arbitrary-sources behavioural-sources

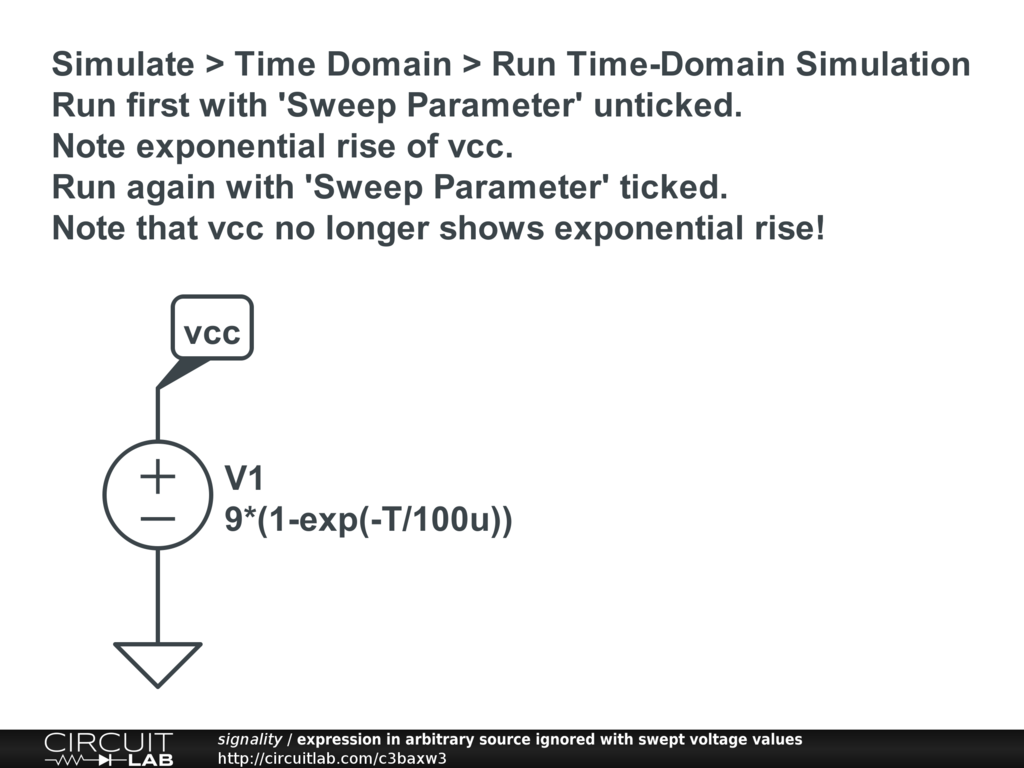

Simulate > Time Domain > Run Time-Domain Simulation

Run first with 'Sweep Parameter' unticked.

Note exponential rise of vcc.

Run again with 'Sweep Parameter' ticked.

Note that vcc no longer shows exponential rise!
