Charge controlled capacitor demo

Demo of the CL charge defined capacitor model.

Simulate > Time Domain > Run Time-Domain Simulation

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Demo of the CL charge defined capacitor model.

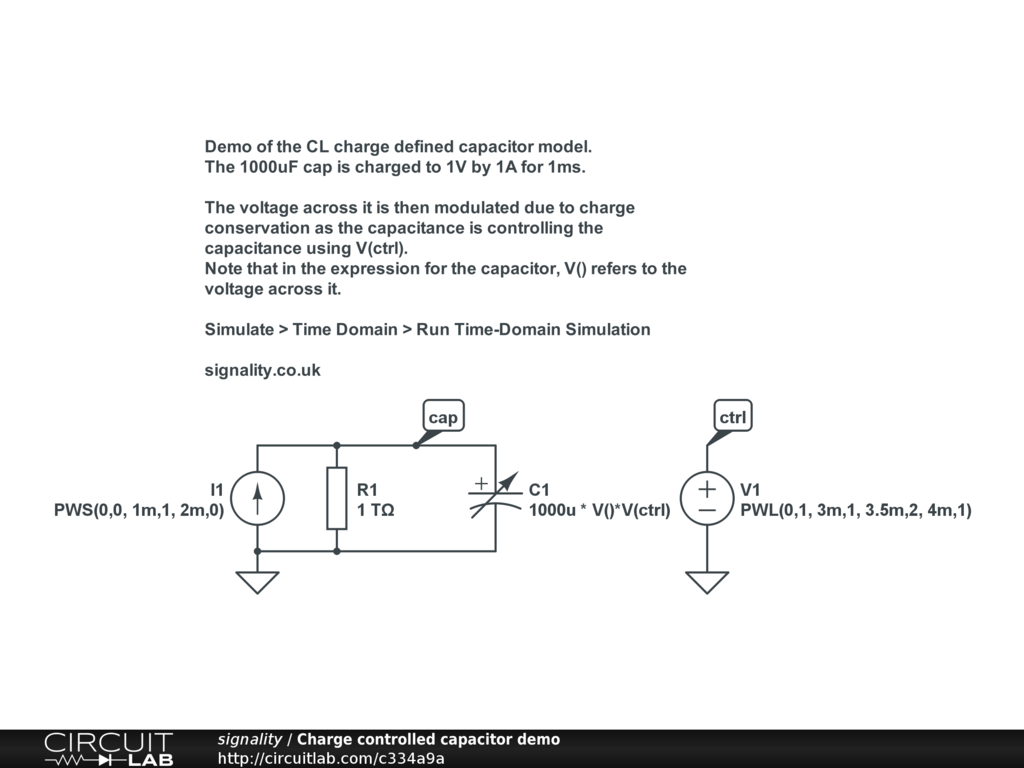

The 1000uF cap is charged to 1V by 1A for 1ms.

The voltage across it is then modulated due to charge conservation as the capacitance is controlling the capacitance using V(ctrl).

Note that in the expression for the capacitor, V() refers to the voltage across it.

Simulate > Time Domain > Run Time-Domain Simulation

signality.co.uk

No comments yet. Be the first!

Only the circuit's creator can access stored revision history.

Charge controlled capacitor demo PUBLIC
