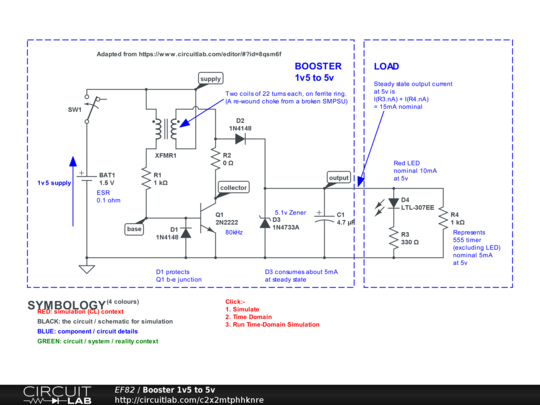

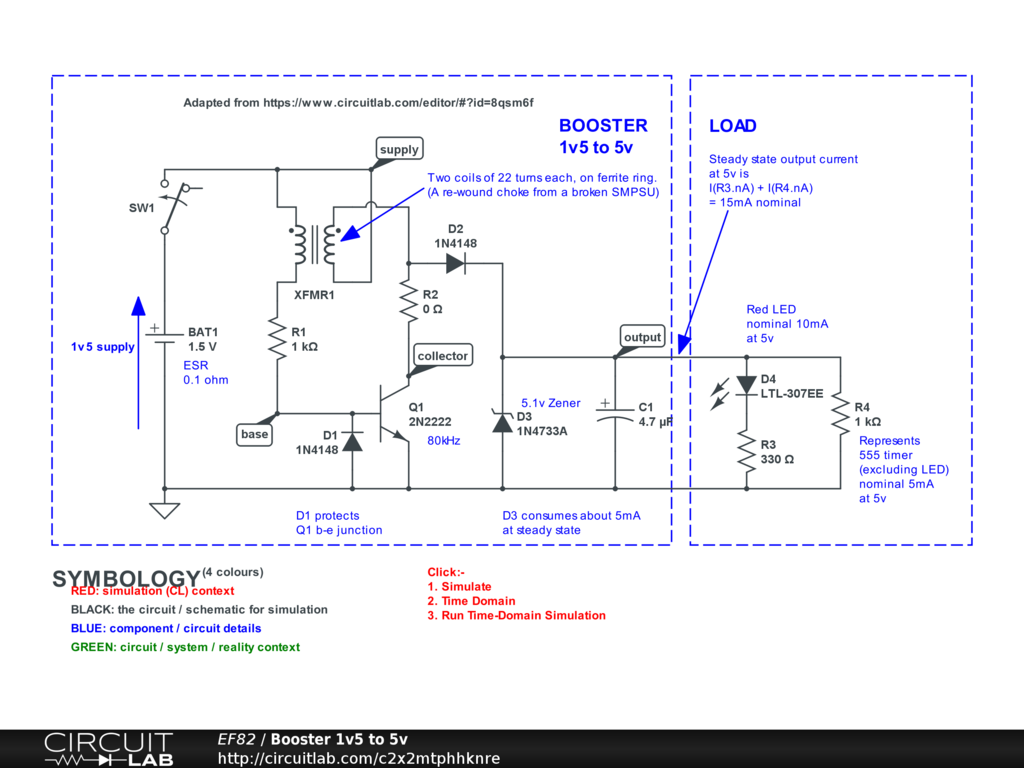

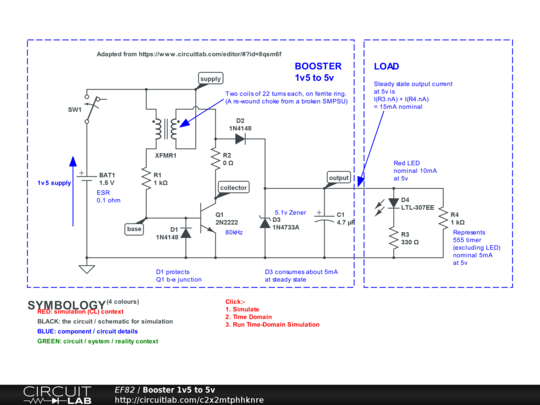

A regulated 5v, 15mA supply from a 1v5 cell.
Uses a blocking oscillator to boost the voltage and simple zener shunt regulation.
The transformer is a re-wound RF choke from a broken mains dimmer switch..
