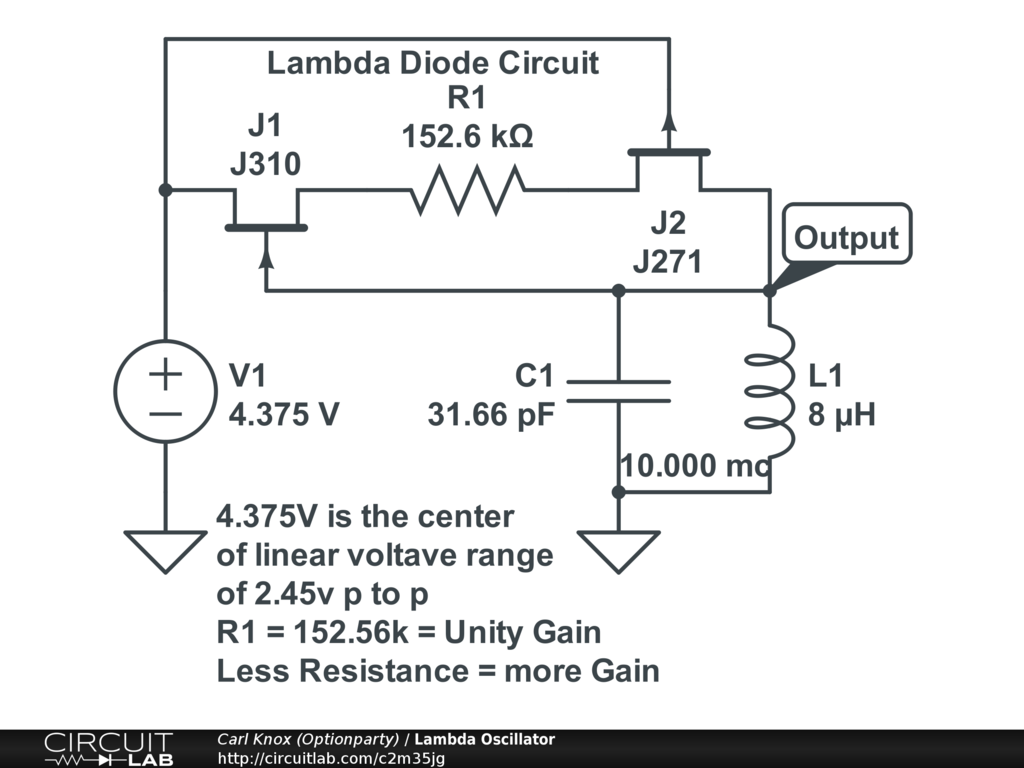

Negative Resistance Circuit, few parts. Sine Wave.


Input voltage effects the circuits "Negative Resistance".
Unity gain is the point that "Positive Resistance" = "Negative Resistance".
At unity Oscillations will not grow or dampen.

The small output voltage can be buffered to the levels needed, and should be clean.
