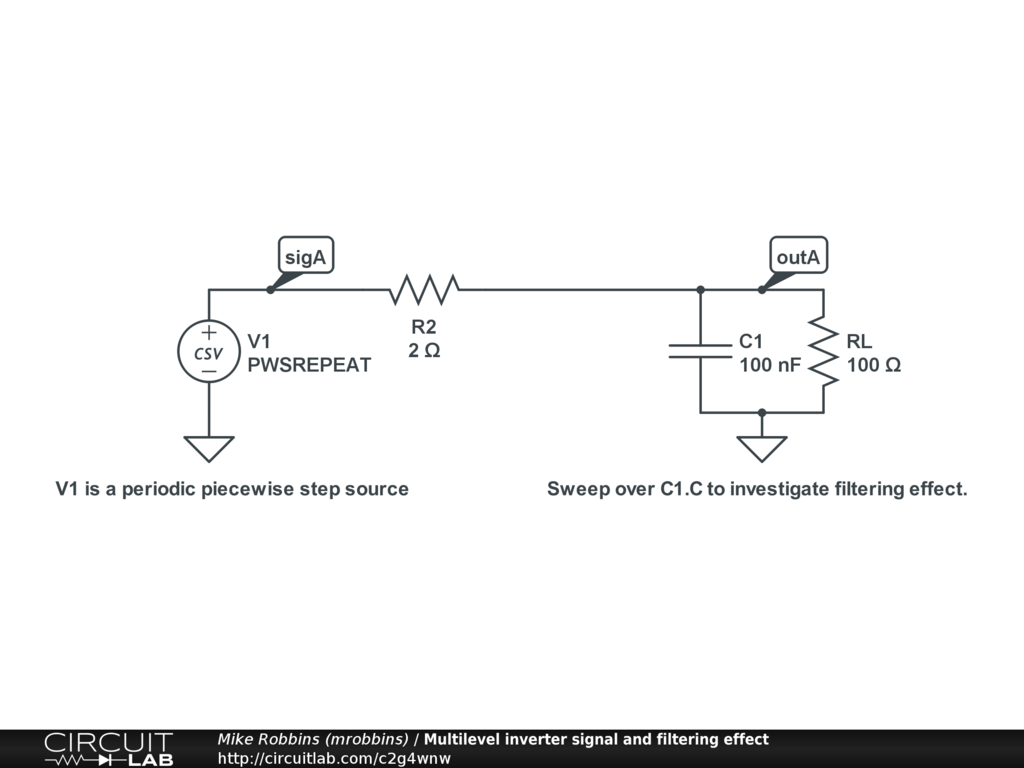

A multilevel inverter signal, a sinusoidal-like source composed of piecewise step voltage segments, is defined using the new CSV voltage source. Simple filtering of the multi-level steps is examined via parameter sweep.


Run the time-domain simulation to see the "stair-step" piecewise-step function defined in V1.

Adjust C1 to vary the level of filtering.
