Electronics question for school. Can someone help explain the answers?

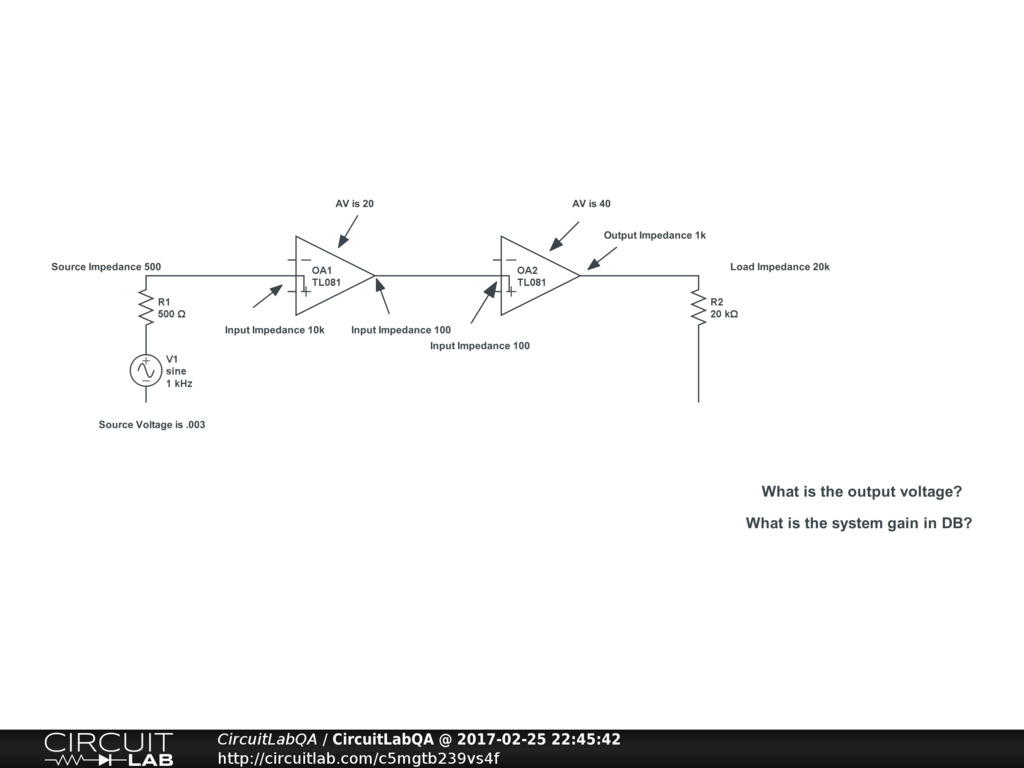

Can anyone help me with this electronics problem I have for school. I thank you for your time.

by holiroller
February 25, 2017

You need to work out the signal losses at each amplifier input and at the final output due to loading of source impedances. Go though the signal path multiplying losses and gains to arrive at the overall voltage gain. Then convert this to dB. Alternatively work out each loss or gain in dB and add then to arrive at the total gain in dB. The latter is the more professional method, applicable to complex systems.

by mikerogerswsm
February 26, 2017

No Answers

No answers yet. Contribute your answer below!
