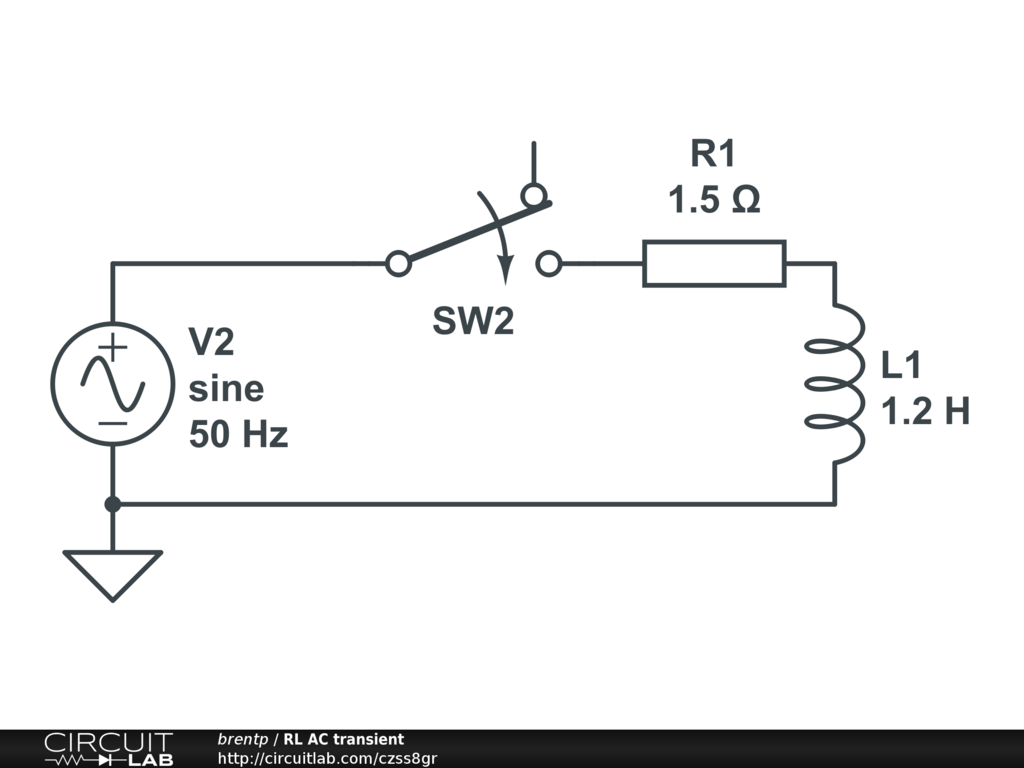

Use this circuit to test the response of a simple RL circuit when an AC source is applied. Vary the time that the switch closes to observe the different outcomes.
Use the time-domain simulation to observe the sine waves for voltage and current.
