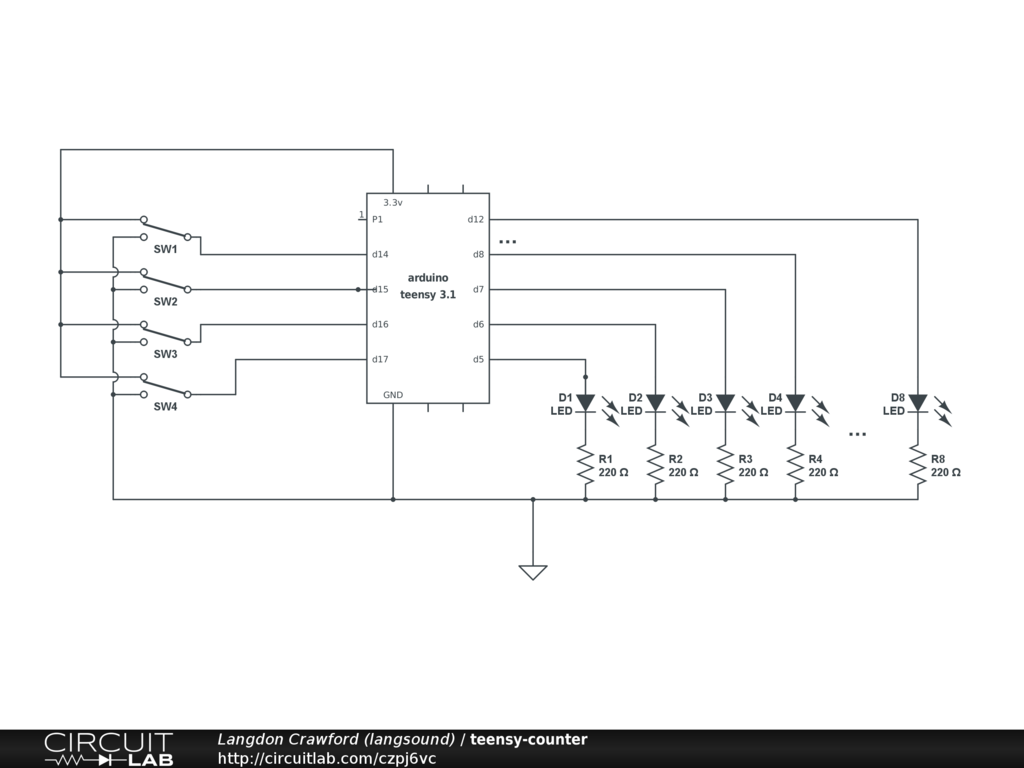

simple io circuit for counting lab. 4 or more switches are connected to digital pins 14-17+, 8 LEDs are connected to digital pins 5-12. (only 5 connections shown for simplicity).
