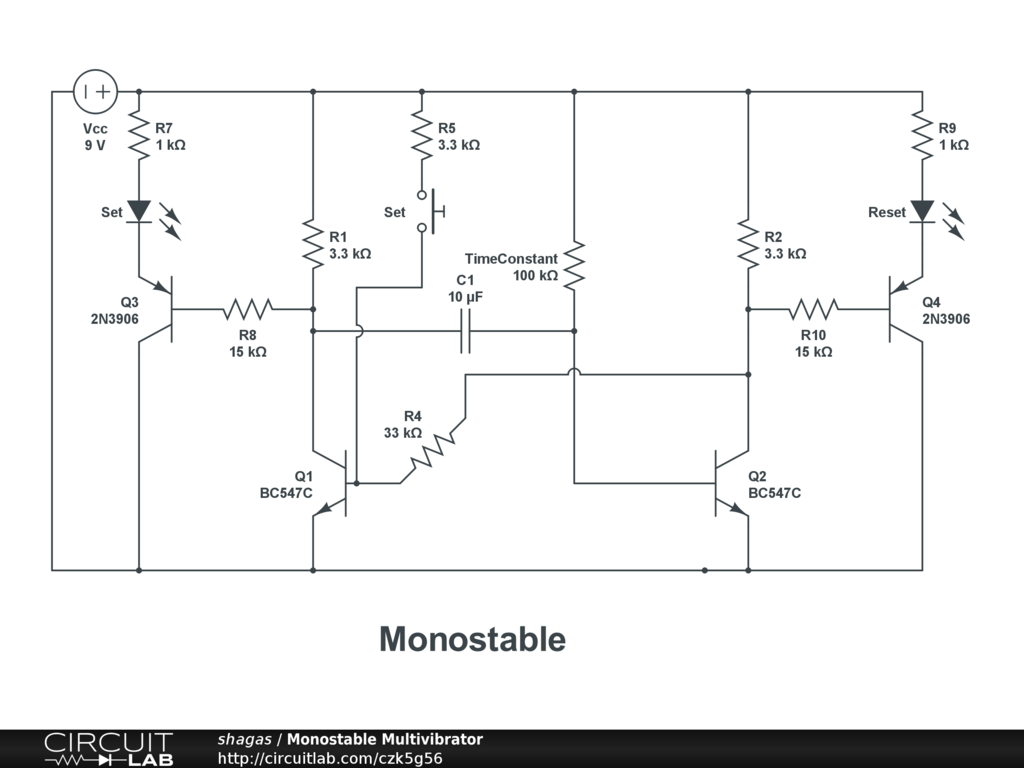

Monostable flip flop with independant transistors for LEd's


Not provided.


cool. I just posted a generic multivibrator. Isn't there a way to make a smaller monostable?

by Maglador
May 03, 2013

Now that I look at it , you can remove the reset switch because the circuit resets itself (I already edited out the reset switch) , and also you can remove q3 and q4 if you don't want the LED's I think that's as much you can strip it

by shagas
May 03, 2013
