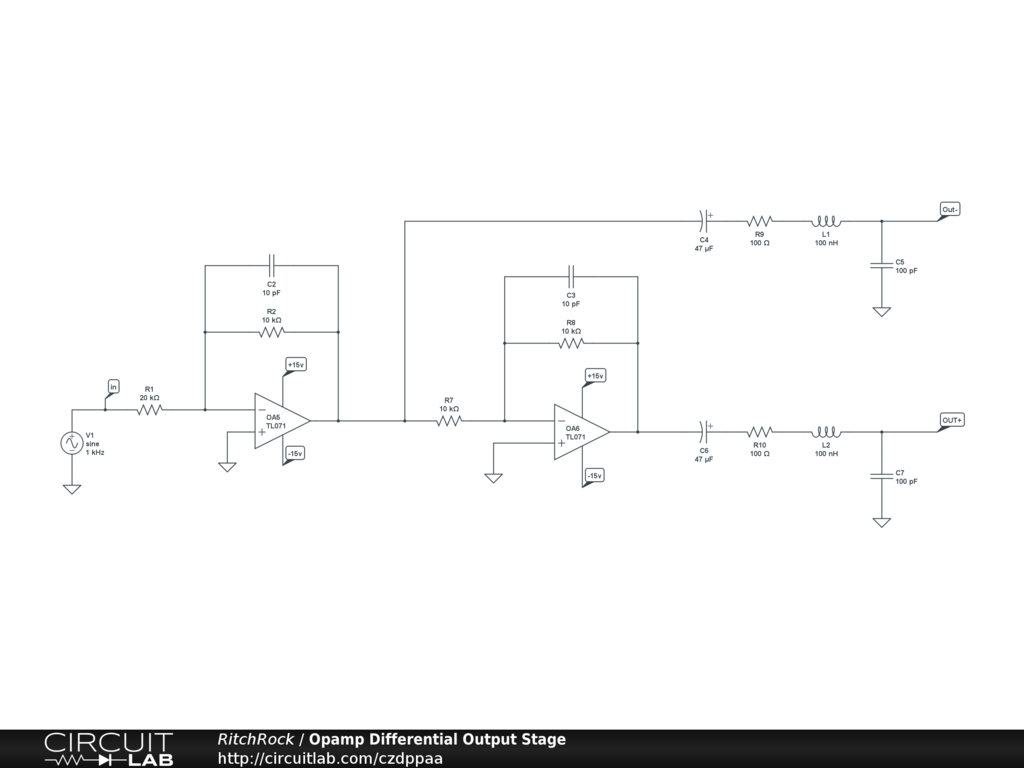

Unbalanced to balanced audio output stage. The inductor and capacitors on the output are for RFI protection and should be chassis grounded. Output coupling capacitors are for blocking +48v phantom power and should be derated accordingly.
