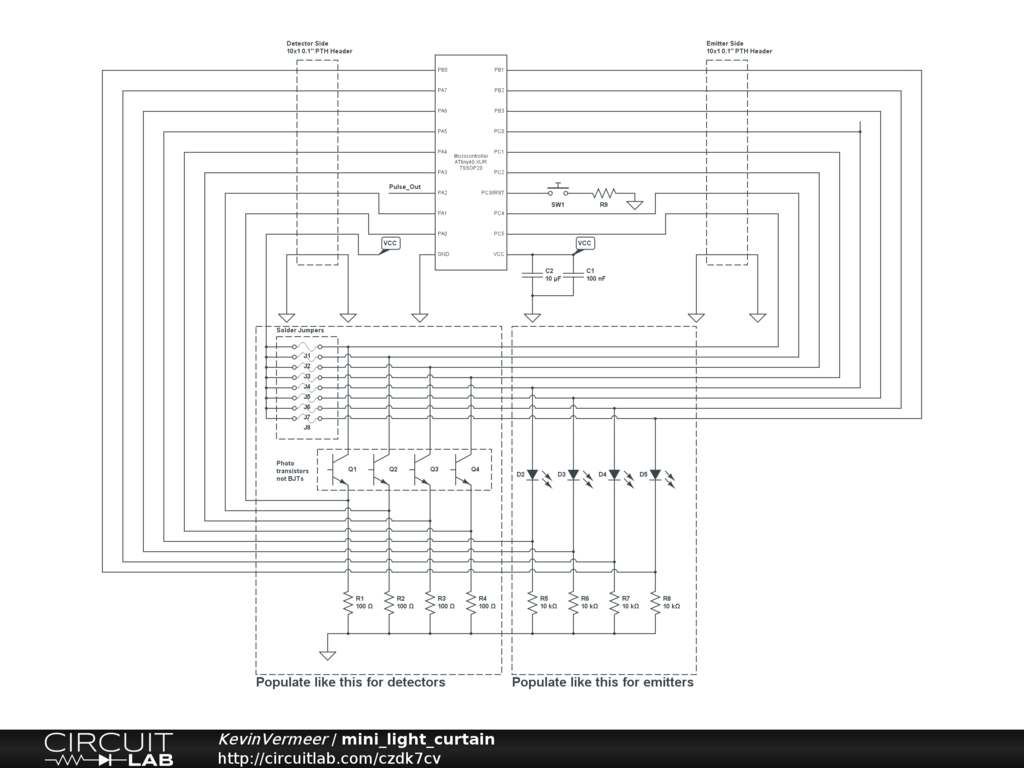

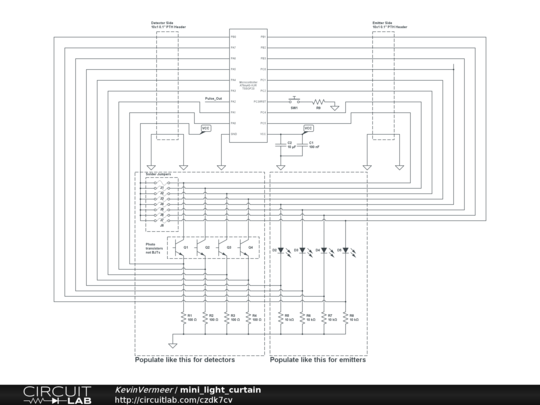

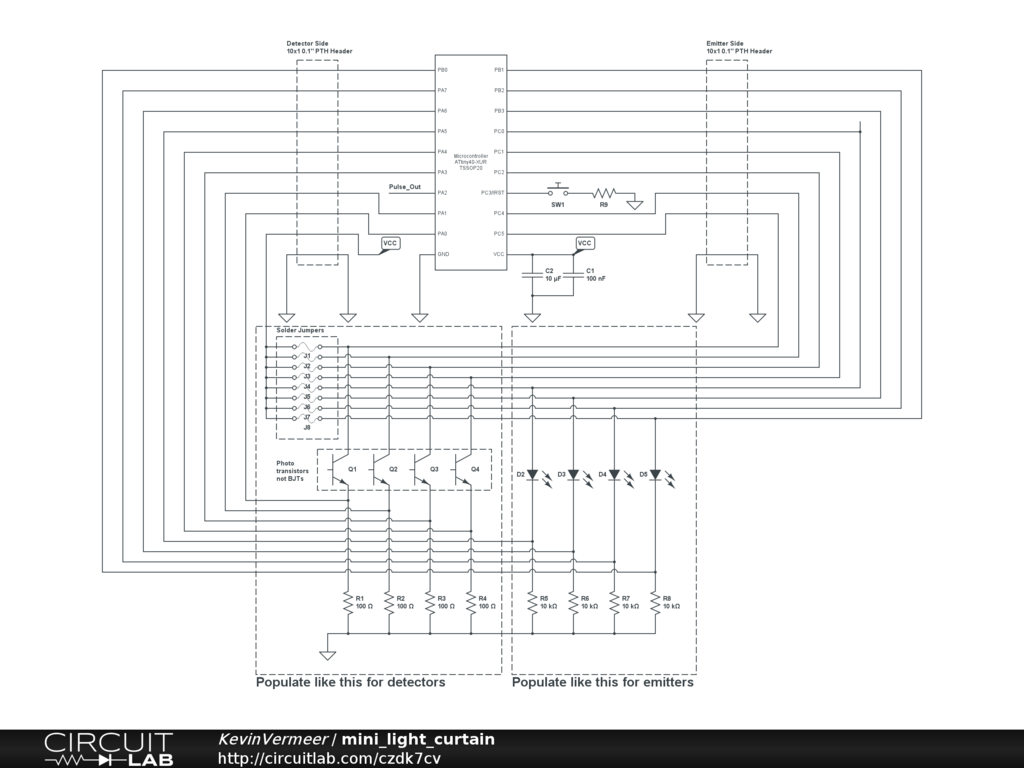

A simple light curtain made of three identical PCBs with various populated components.

Further described on the Electrical Engineering Stackexchange at Sensor for detecting airsoft bullet.

Note: This design is intended to detect objects to time physics experiments, not machine safety, and should not be considered a substitute for real light curtains.
