Single Pulse from AC Waveform

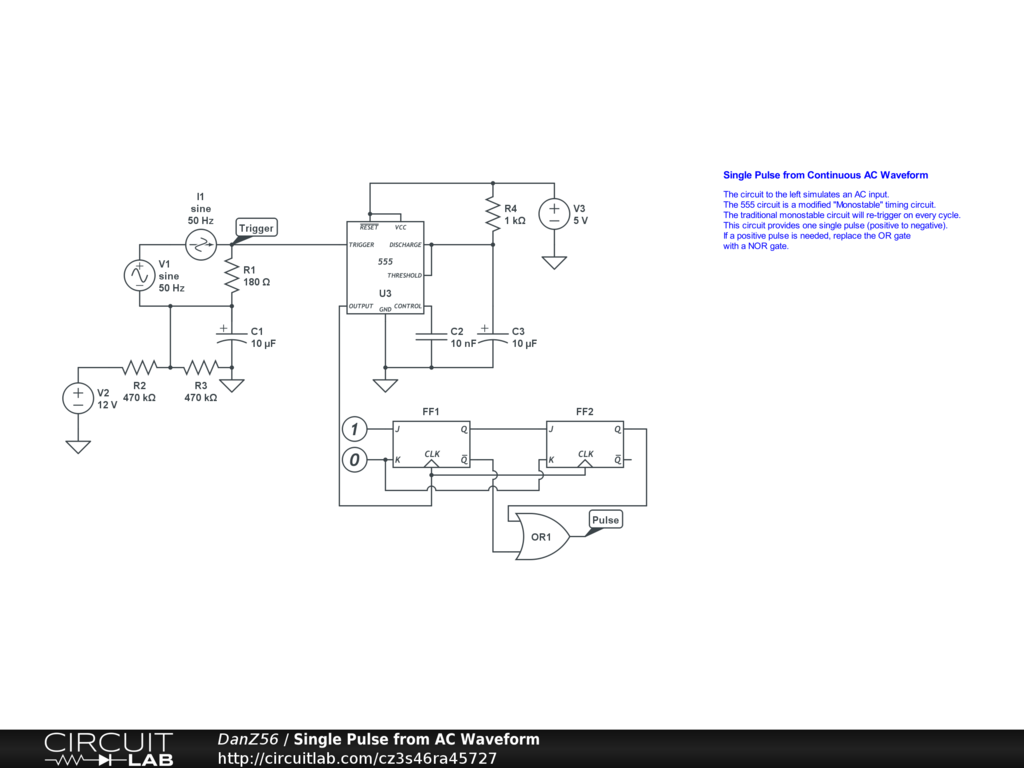

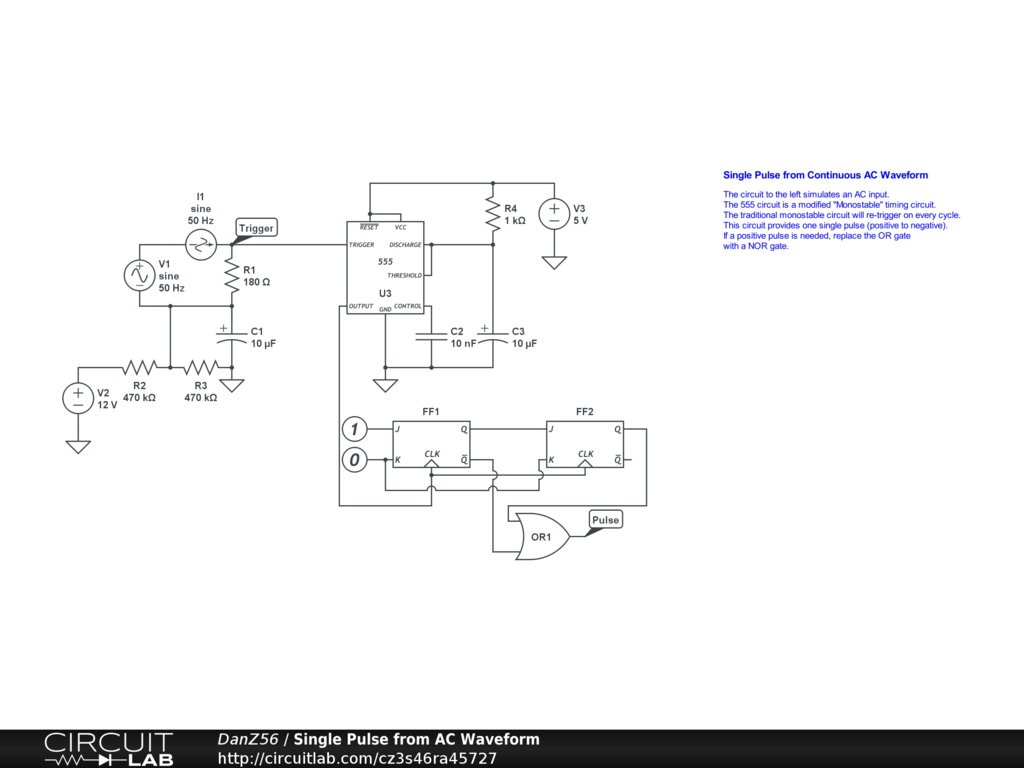

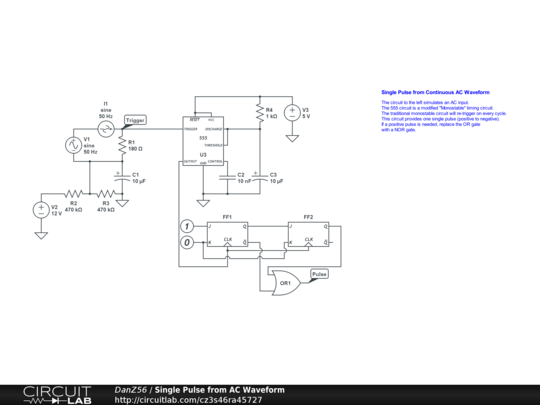

This circuit generates a single pulse from a continuous AC input, can be used to initialize timers, etc.
