+-9VDC Supply for Dream-Rig Project

Created by	HARRISON RICHTER (Kurtus)
Created	1 hour, 15 minutes ago
Last modified	1 hour, 3 minutes ago
Tags	9vdc-power-supply

Summary

General-Purpose Regulated +-9VDC Power-Supply

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Description

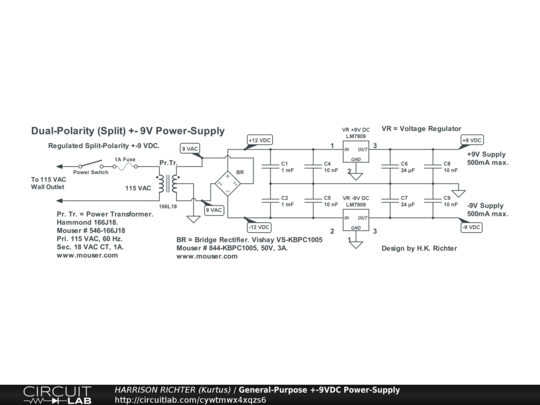

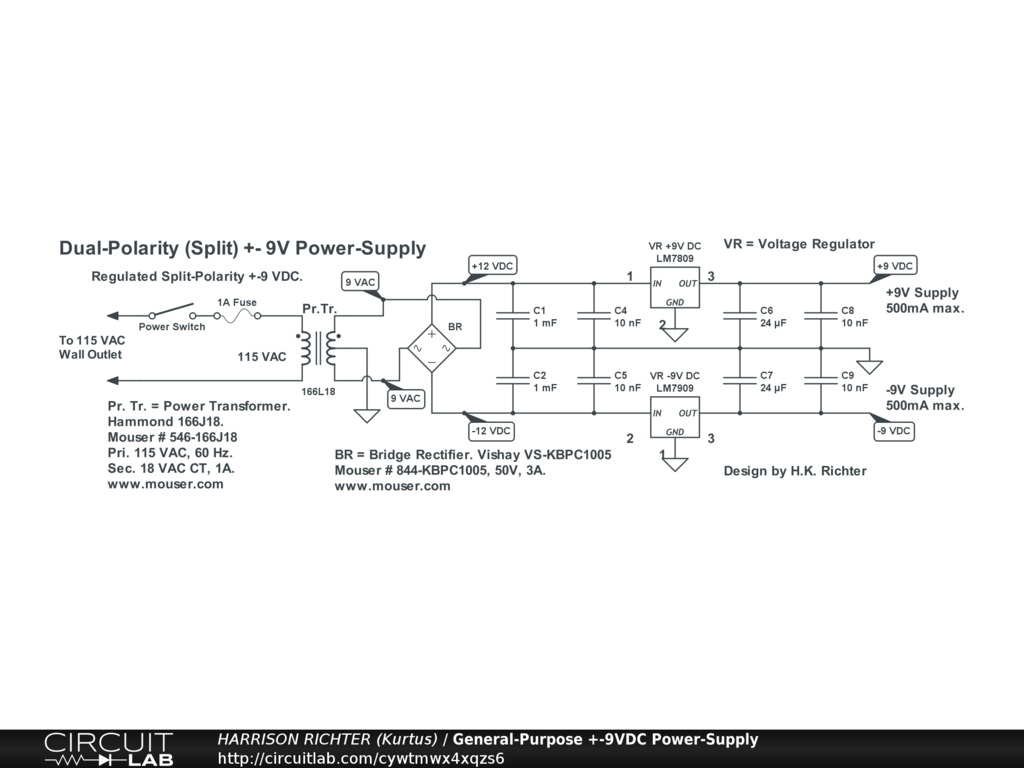

General-purpose regulated dual-polarity +-9VDC power-supply providing up to 500 mA of current. Ideal for simultaneously powering Circuits 1, 2, 3.1, 3.2, 4, and 6 of the Dream-Rig Project.
