AR-312 UNLISTED

Created by
Created December 30, 2012
Last modified December 31, 2012
Tags No tags.

Summary

Aries AR-312 Envelope Generator (ADSR)

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

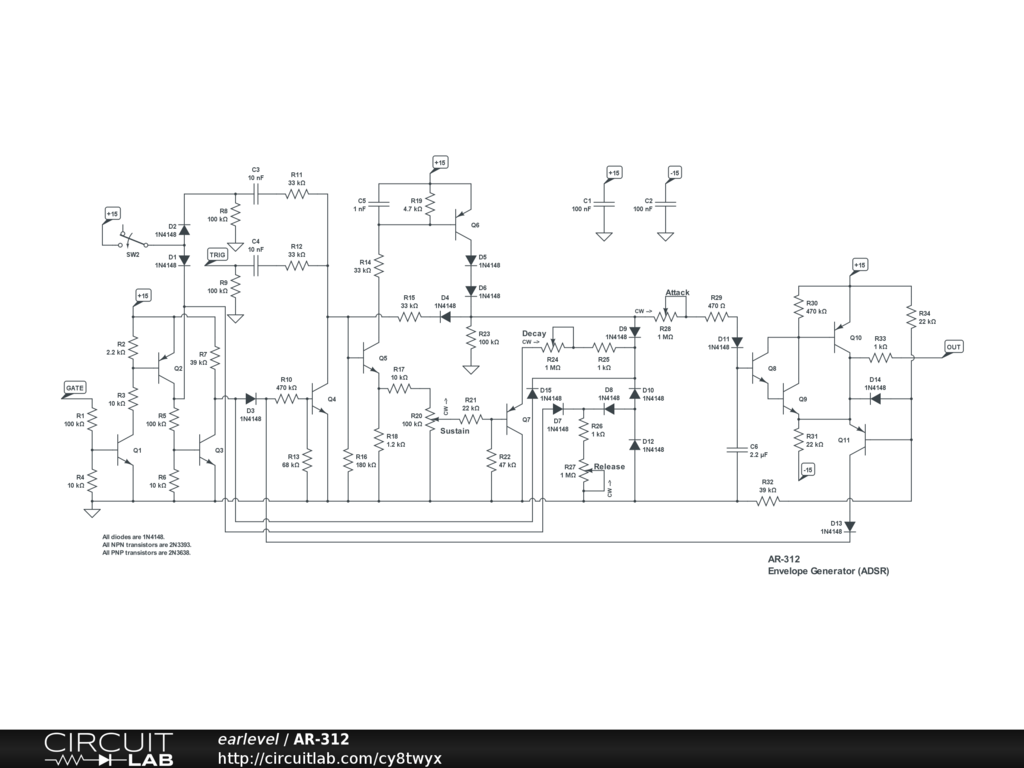

Aries AR-312 Envelope Generator (ADSR)

All diodes are 1N4148. All NPN transistors are 2N3393. All PNP transistors are 2N3638.
